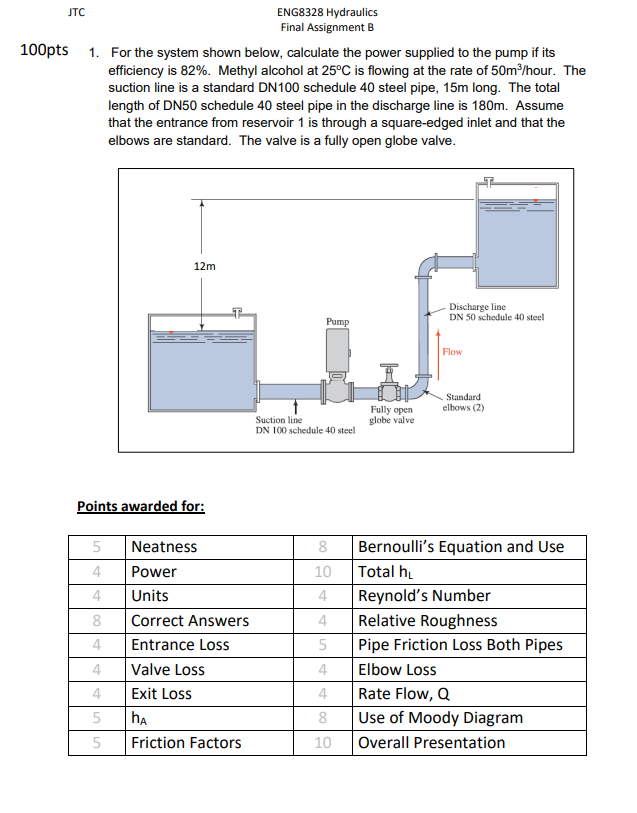

JTC

ENG$8328$ Hydraulics

Final Assignment B

$100$pts $1.$ For the system shown below, calculate the power supplied to the pump if its efficiency is $\backslash (82\backslash \%\backslash ).$ Methyl alcohol at $\backslash (25^\{\backslash$circ$\}\backslash$mathrm$\{$C$\}\backslash )$ is flowing at the rate of $\backslash (50\backslash$mathrm$\{$~m$\}^\{3\}/\backslash$mathrm$\{$hour$\}\backslash ).$ The suction line is a standard DN$100$ schedule $40$ steel pipe, $15$ m long. The total length of DN$50$ schedule $40$ steel pipe in the discharge line is $180$ m $.$ Assume that the entrance from reservoir $1$ is through a square$-$edged inlet and that the elbows are standard. The valve is a fully open globe valve.

Can you please provide the asnwers and also make sure to follow the rubric, Thank you so much!
