Knowledge Adaptation

You have been tasked with developing the DHCP IP assignment scheme for a branch network. Based on the information provided provide the scope range, scope exclusions, and scope reservations.

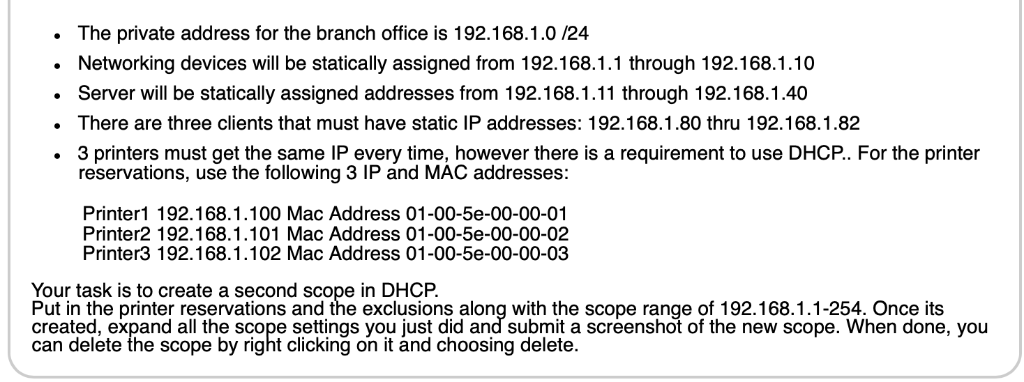

. The private address for the branch office is 192.168.1.0 /24 . Networking devices will be statically assigned from 192.168.1.1 through 192.168.1.10 . Server will be statically assigned addresses from 192.168.1.11 through 192.168.1.40 . There are three clients that must have static IP addresses: 192.168.1.80 thru 192.168.1.82 . 3 printers must get the same IP every time, however there is a requirement to use DHCP.. For the printer reservations, use the following 3 IP and MAC addresses: Printer1 192.168.1.100 Mac Address 01-00-5e-00-00-01 Printer2 192.168.1.101 Mac Address 01-00-5e-00-00-02 Printer3 192.168.1.102 Mac Address 01-00-5e-00-00-03 Your task is to create a second scope in DHCP. Put in the printer reservations and the exclusions along with the scope range of 192.168.1.1-254. Once its created, expand all the scope settings vou just did and submit a screenshot of the new scope. When done, you can delete the scope by right clicking on it and choosing delete
