Lab 10.c

#include "stdio.h"

/*

structure is a user defined data type which allows you to combine data items of different kinds.

Structures are used to represent a record. The following structure combines sum and

carryOut variables.

*/

struct fullAdderReturn {

int sum;

int carryOut;

};

// typedef will give our structure (struct fullAdderReturn) a new name: adder_type

// now we can use adder_type the same way as other data type (int, float, etc. )

typedef struct fullAdderReturn adder_type;

/*

*** function declaration ***

A function is a module or block of program code which deals with a particular task.

Making functions is a way of isolating one block of code from other independent blocks of code.

Functions serve two purposes:

1 - Functions allow a programmer to say: `this piece of code does a specific job which stands by itself and should not be mixed up with anyting else'.

2 - Functions make a block of code reusable since a function can be reused in many different contexts without repeating parts of the program text.

A function can take a number of parameters, do required processing and then return a value. There may be a function which does not return any value.

A function declaration is usually declared at the top of a C source file. A function declaration is sometime called function prototype or function signature.

For instance Demo() function which returns an integer, and takes two parameters (par1 and par2) is decleared as follows:

int Demo( int par1, int par2);

// decleration of nthBinaryBit

function name: nthBinaryBit

fucntion return type: int (integer)

function takes two parameters: int number, int n

The following function takes an integer number, and returns its nth bit in binary

example:

nthBinaryBit (10, 1) = 0 10 in binary: 1010

nthBinaryBit (10, 2) = 1 10 in binary: 1010

nthBinaryBit (10, 3) = 0 10 in binary: 1010

nthBinaryBit (10, 4) = 1 10 in binary: 1010

*/

int nthBinaryBit(int number, int n);

// decleration of oneBitAdder

// fucntion return type: adder_type

// function takes three parameters: int a, int b, int carryIn

// The following function takes an integer number, and returns its nth bit in binary

adder_type oneBitAdder(int a, int b, int carryIn);

// nthBinaryBit function body

int nthBinaryBit(int number, int n) {

int bit; //variable to hold bit

for (int i = 0; i

if (number & 1) //bit detection (&: bitwise AND)

bit = 1;

else

bit = 0;

number >>= 1; //shift right number by 1

}

return bit;

}

// oneBitAdder function body

adder_type oneBitAdder(int a, int b, int carryIn) {

adder_type output;

//*** ADD COMMENTS

output.sum = a ^ b ^ carryIn; //^ : bitwise xor

//*** ADD COMMENTS

output.carryOut = (a & b) | (a & carryIn) | (a & carryIn); // | :bitwise OR

return output;

}

int main() {

int a = 1;

int b = 0;

int n = 1;

int c;

c = nthBinaryBit(a, n);

printf("The %d(std/th) bit of %d: %d", n, a, c);

int Cin = 0;

//*** ADD COMMENTS

adder_type adder01 = oneBitAdder(a, b, Cin);

printf(" input a = %d", a);

printf(" input b = %d", b);

printf(" input Cin = %d", Cin);

//access sum and carryOut

printf(" a+b sum = %d", adder01.sum);

printf(" a+b carryOut = %d", adder01.carryOut);

return 0;

}

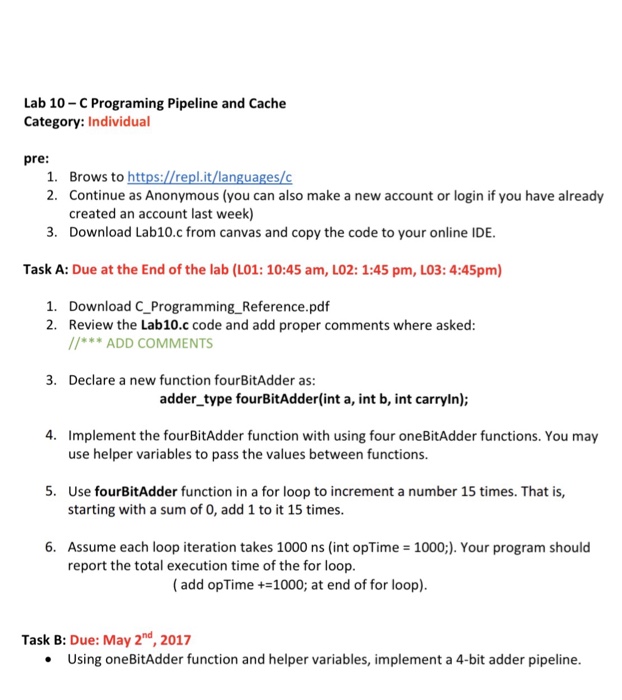

Lab 10-C Programing Pipeline and Cache Category: Individual pre: 1. Brows to https languages c re 2. Continue as Anonymous (you can also make a new account or login if you have already created an account last week) 3. Download Lab10.c from canvas and copy the code to your online IDE. Task A: Due at the End of the lab (L01: 10:45 am, L02: 1:45 pm, LO3: 4:45pm) 1. Download C Programming Reference.pdf 2. Review the Lab10.c code and add proper comments where asked: ADD COMMENTS 3. Declare a new function fourBitAdder as: adder type fourBitAdder(int a, int b, int carryln); 4. Implement the fourBitAdder function with using four oneBitAdder functions. You may use helper variables to pass the values between functions. 5. Use fourBitAdder function in a for loop to increment a number 15 times. That is, starting with a sum of 0, add 1 to it 15 times. 6. Assume each loop iteration takes 1000 ns (intopTime 1000). Your program should report the total execution time of the for loop. add opTime 1000; at end of for loop). Task B: Due: May 2nd, 2017 Using oneBitAdder function and helper variables, implement a 4-bit adder pipeline
