Lab $4$

Objective: To design a small$-$scale corporate network topology and

create a connection among different networks.

Tasks:

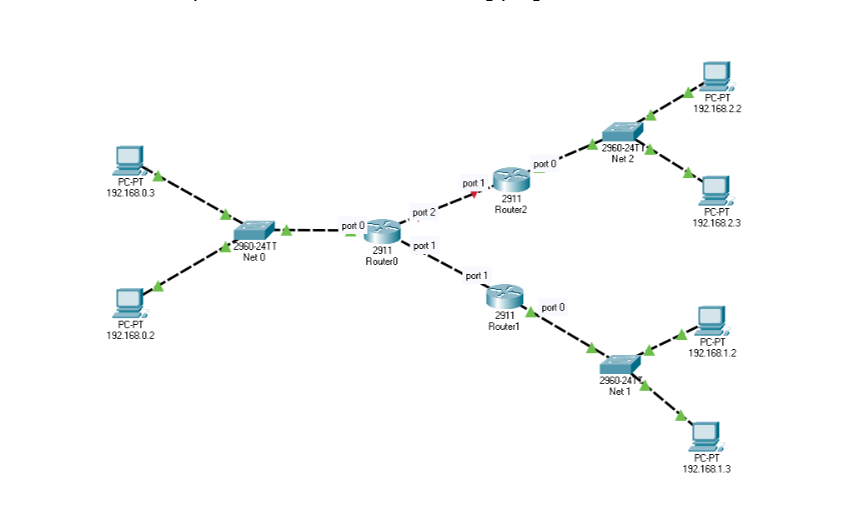

$1.$ Implement the following topology in Cisco Packet Tracer.

$2.$ Assign the IP address and Subnet as shown in the figure.

a$.$ Subnet Mask will be $255\mathrm{.}255\mathrm{.}255\mathrm{.}0$

b$.$ Default Gateway of the computers will be the IP address

assigned to the port$0$ of the closest router.

$3.$ Assign IP addresses to the router ports.

$4.$ Add the static routing rules to all routers.

$5.$ Test your network connection using ping and tracert.

Write a short report on your design including:

$1.$ The screenshot of the topology.

$2.$ IP assignment with the router ports.

$3.$ Routing table for each router.

$4.$ Screenshots of the traceroutes.

o Must include traceroute from $192\mathrm{.}168\mathrm{.}0\mathrm{.}2$ to $192\mathrm{.}168\mathrm{.}1\mathrm{.}2$

o Must include traceroute from $192\mathrm{.}168\mathrm{.}0\mathrm{.}2$ to $192\mathrm{.}168\mathrm{.}2\mathrm{.}2$

o Must include traceroute from $192\mathrm{.}168\mathrm{.}1\mathrm{.}2$ to $192\mathrm{.}168\mathrm{.}2\mathrm{.}2$

$5.$ Submission Guideline:

o Upload your report to Canvas.

o Upload your Cisco packet tracer file to Canvas.

Example $($filled with random values$)$

IP settings of Router $0$

Port No IP Address

$110\mathrm{.}2\mathrm{.}3\mathrm{.}5$

Router Table of Router $0$

Network Address Subnet Mask Next Hop

$192\mathrm{.}168\mathrm{.}0\mathrm{.}0255\mathrm{.}255\mathrm{.}255\mathrm{.}010\mathrm{.}3\mathrm{.}0\mathrm{.}2$
