Question: Last answer was wrong, can you please send me the correct answer for this. thank you 5 - Screw Design for Swivel Hook The steel

Last answer was wrong, can you please send me the correct answer for this. thank you

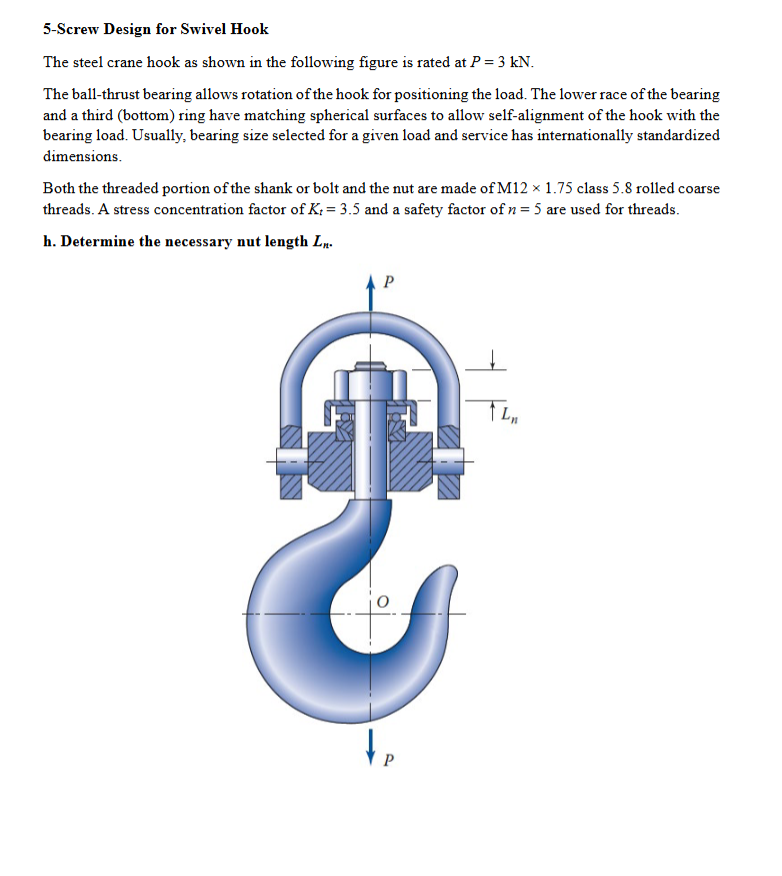

5-Screw Design for Swivel Hook
The steel crane hook as shown in the following figure is rated at \( P=3\mathrm{kN}\).
The ball-thrust bearing allows rotation of the hook for positioning the load. The lower race of the bearing and a third (bottom) ring have matching spherical surfaces to allow self-alignment of the hook with the bearing load. Usually, bearing size selected for a given load and service has internationally standardized dimensions.
Both the threaded portion of the shank or bolt and the nut are made of M12\(\times 1.75\) class 5.8 rolled coarse threads. A stress concentration factor of \( K_{t}=3.5\) and a safety factor of \( n=5\) are used for threads.
h. Determine the necessary nut length \( L_{n}\).
