Question: Let E 1 = 1 and E 0 = 0 and the output be 1 in the following circuit. ( a ) ( 1 point

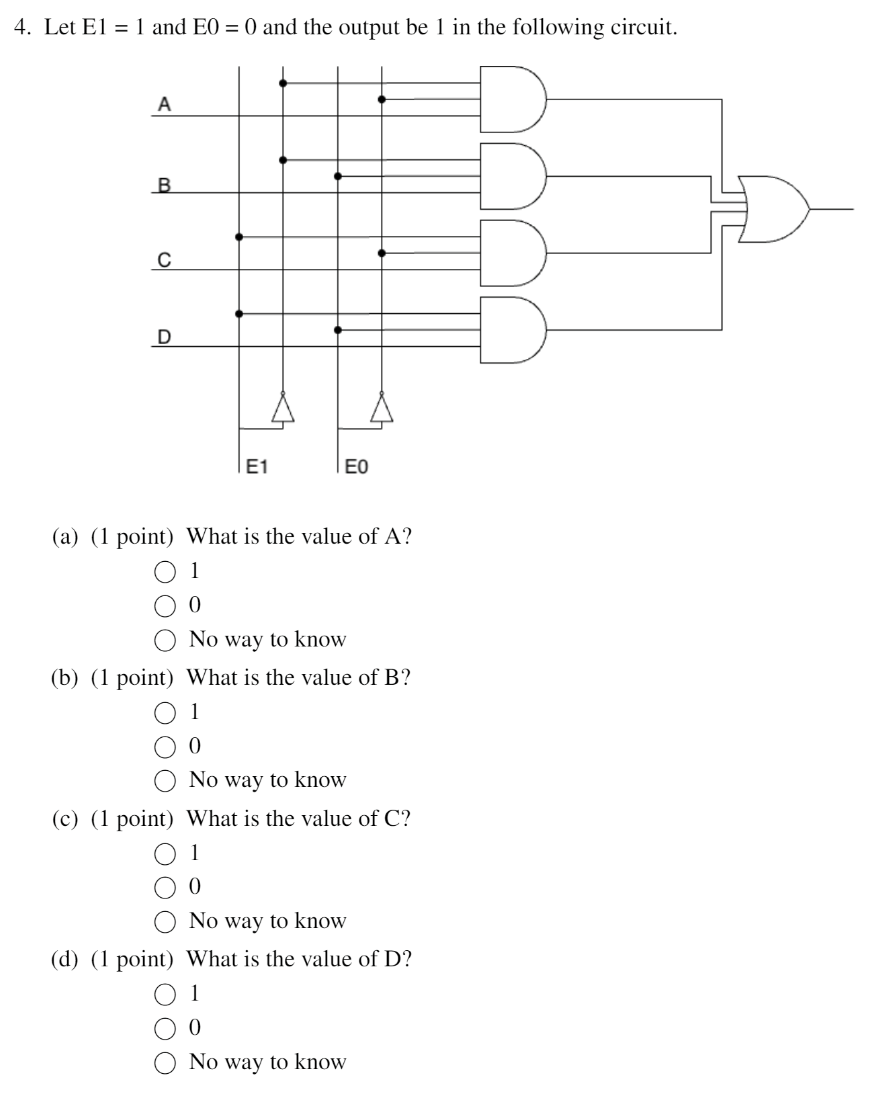

Let E1=1 and E0=0 and the output be 1 in the following circuit.
(a)(1 point) What is the value of A?
1
0
No way to know
(b)(1 point) What is the value of B?
0
No way to know
(c)(1 point) What is the value of C?
1
0
No way to know
(d)(1 point) What is the value of D?
 Let E1=1 and E0=0 and the output be 1 in the
