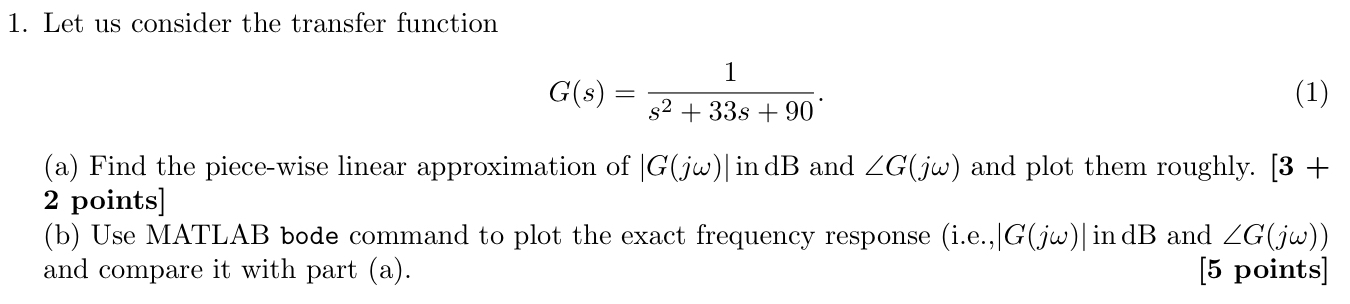

Question: Let us consider the transfer function G ( s ) = 1 s 2 + 3 3 s + 9 0 ( a ) Find

Let us consider the transfer function
G(s)=1s2+33s+90
(a) Find the piece-wise linear approximation of |G(j)| in dB and ??G(j) and plot them roughly. [3+2 points]
(b) Use MATLAB bode command to plot the exact frequency response (i.e.,|G(j)| in dB and ??G(j) and compare it with part (a).
[5 points]
