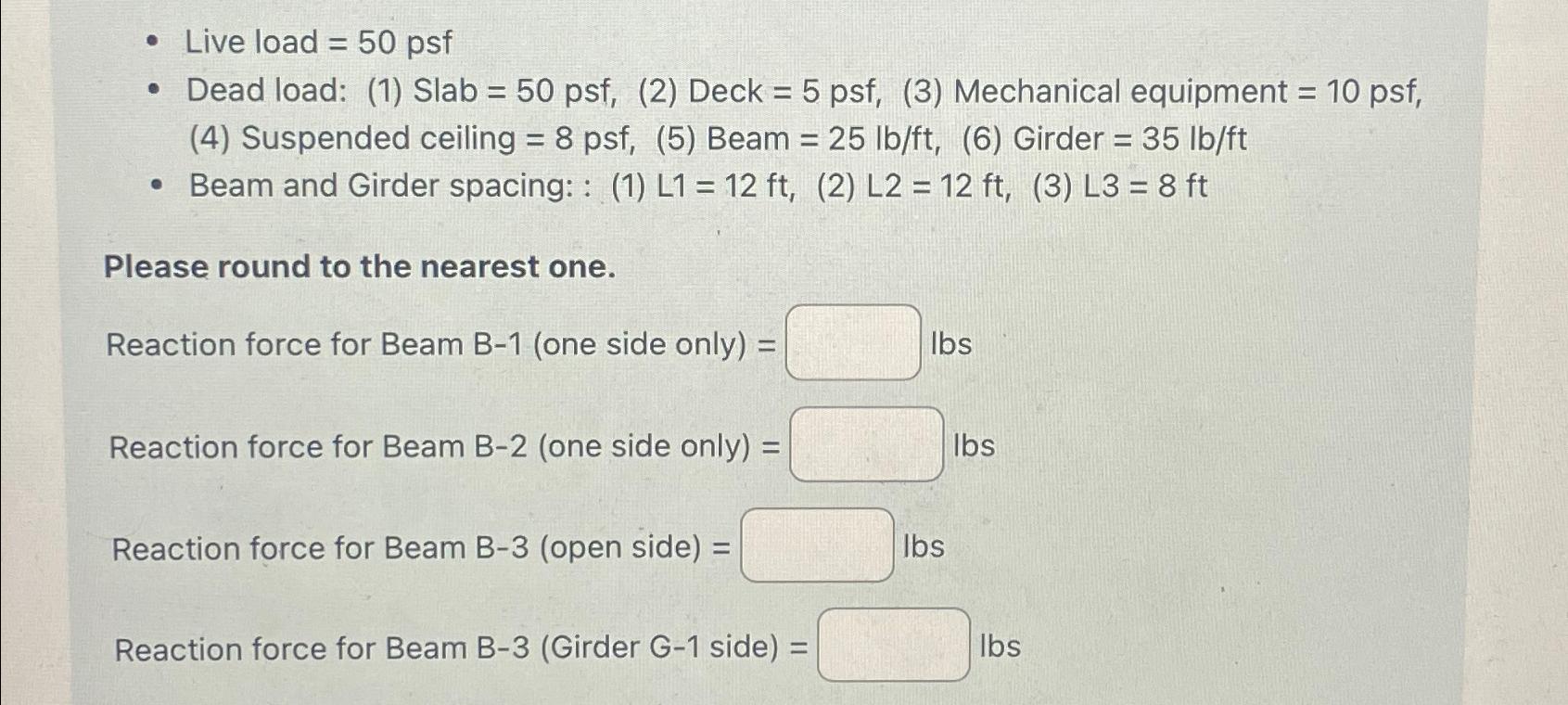

Question: Live load = 5 0 psf Dead load: ( 1 ) Slab = 5 0 psf , ( 2 ) Deck = 5 psf ,

Live load =50 psf
Dead load: (1) Slab =50 psf,(2) Deck =5 psf,(3) Mechanical equipment =10 psf,(4) Suspended ceiling =8psf,(5) Beam =25lbft,(6) Girder =35lbft
Beam and Girder spacing: : (1)L1=12ft,(2)L2=12ft,(3)L3=8ft
Please round to the nearest one.
Reaction force for Beam B-1(one side only)= lbs
Reaction force for Beam B-2(one side only)= Ibs
Reaction force for Beam B-3(open side)= lbs
Reaction force for Beam B-3(Girder G-1 side)= lbs
