Question: Locate the centroid ( bar { y } ) ( from the top of the beam to x axis ) of the

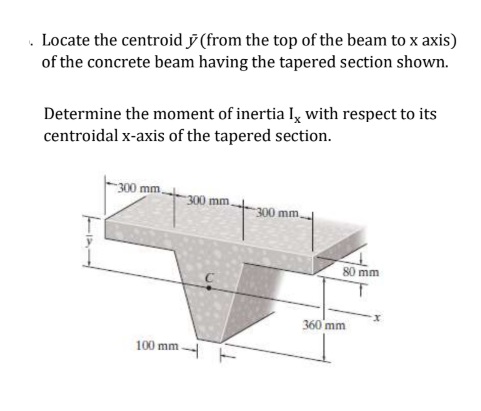

Locate the centroid \(\bar{y}\)(from the top of the beam to x axis) of the concrete beam having the tapered section shown.
Determine the moment of inertia \(\mathrm{I}_{\mathrm{x}}\) with respect to its centroidal x -axis of the tapered section.
Locate the centroid \ ( \ bar { y } \ ) ( from

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
