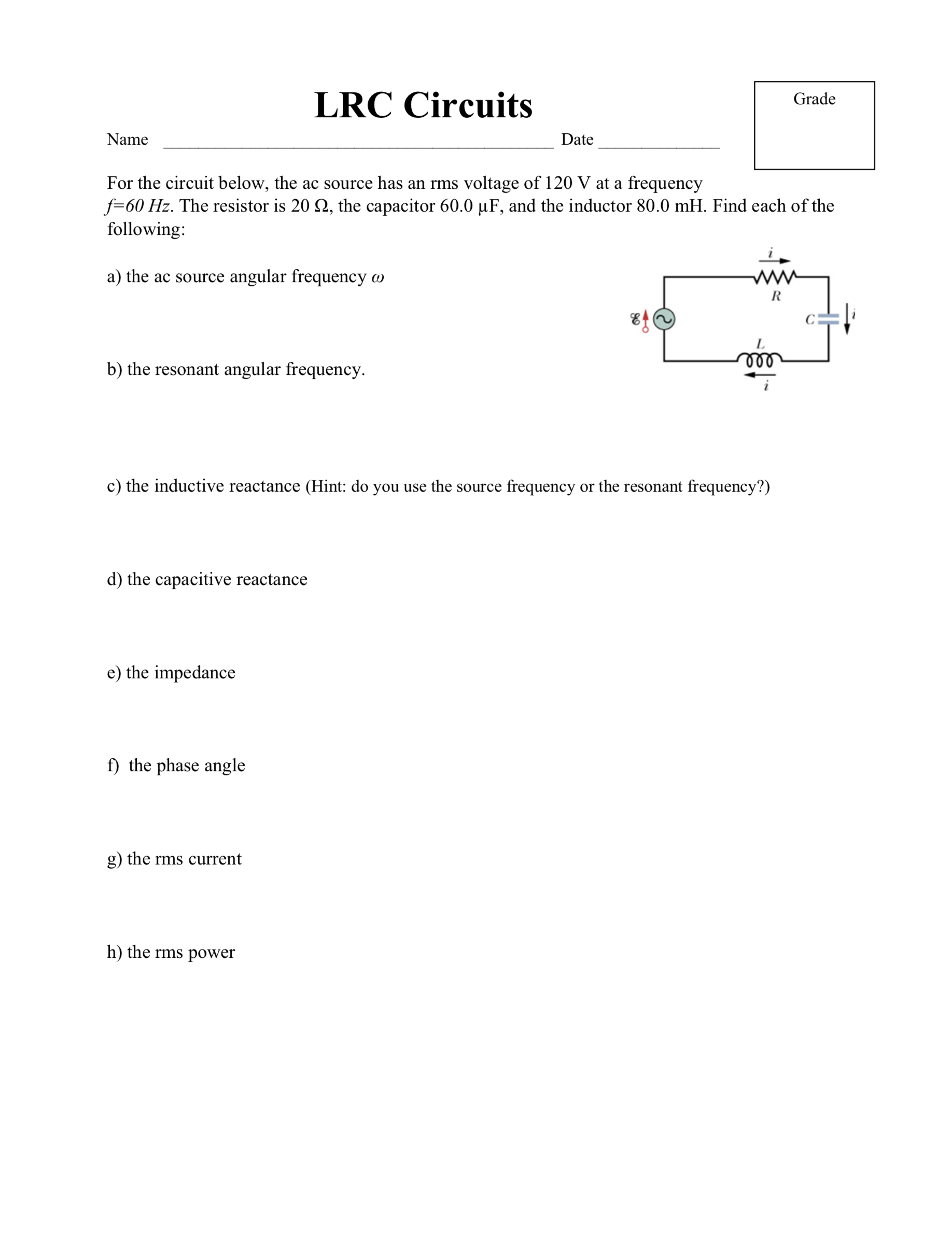

LRC Circuits Grade Name Date For the circuit below, the ac source has an rms voltage of 120 V at a frequency f=60 Hz. The resistor is 20 2, the capacitor 60.0 uF, and the inductor 80.0 mH. Find each of the following: a) the ac source angular frequency w MW R 800 b) the resonant angular frequency. c) the inductive reactance (Hint: do you use the source frequency or the resonant frequency?) d) the capacitive reactance e) the impedance f) the phase angle g) the rms current h) the rms power
