Question: Make a drawing over the adjacent detail. Draw the number of views and in the way you find appropriate so that the shape and dimensions

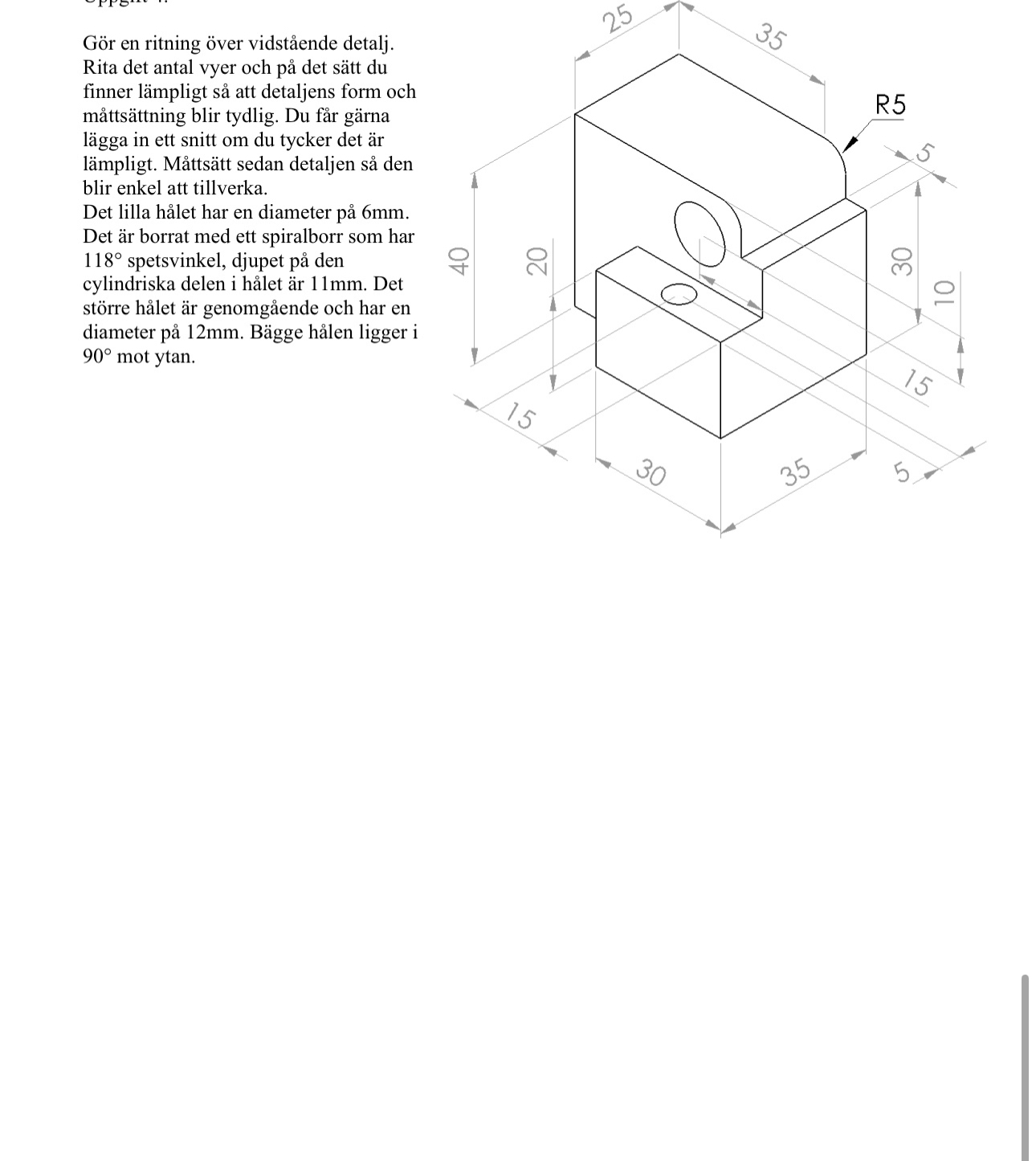

Make a drawing over the adjacent detail. Draw the number of views and in the way you find appropriate so that the shape and dimensions of the detail become clear. You are welcome to insert a section if you think it is appropriate. Then measure the detail so it will be easy to manufacture.The small hole has a diameter of

6

.

It is drilled with a twist drill that has a

118 \

deg tip angle, the depth of the cylindrical part in the hole is

11

.

The larger hole is through and has a diameter of

12

.

Both holes are at

90 \

deg to the surface

Make a drawing over the adjacent detail. Draw the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
