Question: Mech. of Materials ( 2 0 % ) A rectangular block, which is part of a cantilever beam, has a negligible weight and is subjected

Mech. of Materials

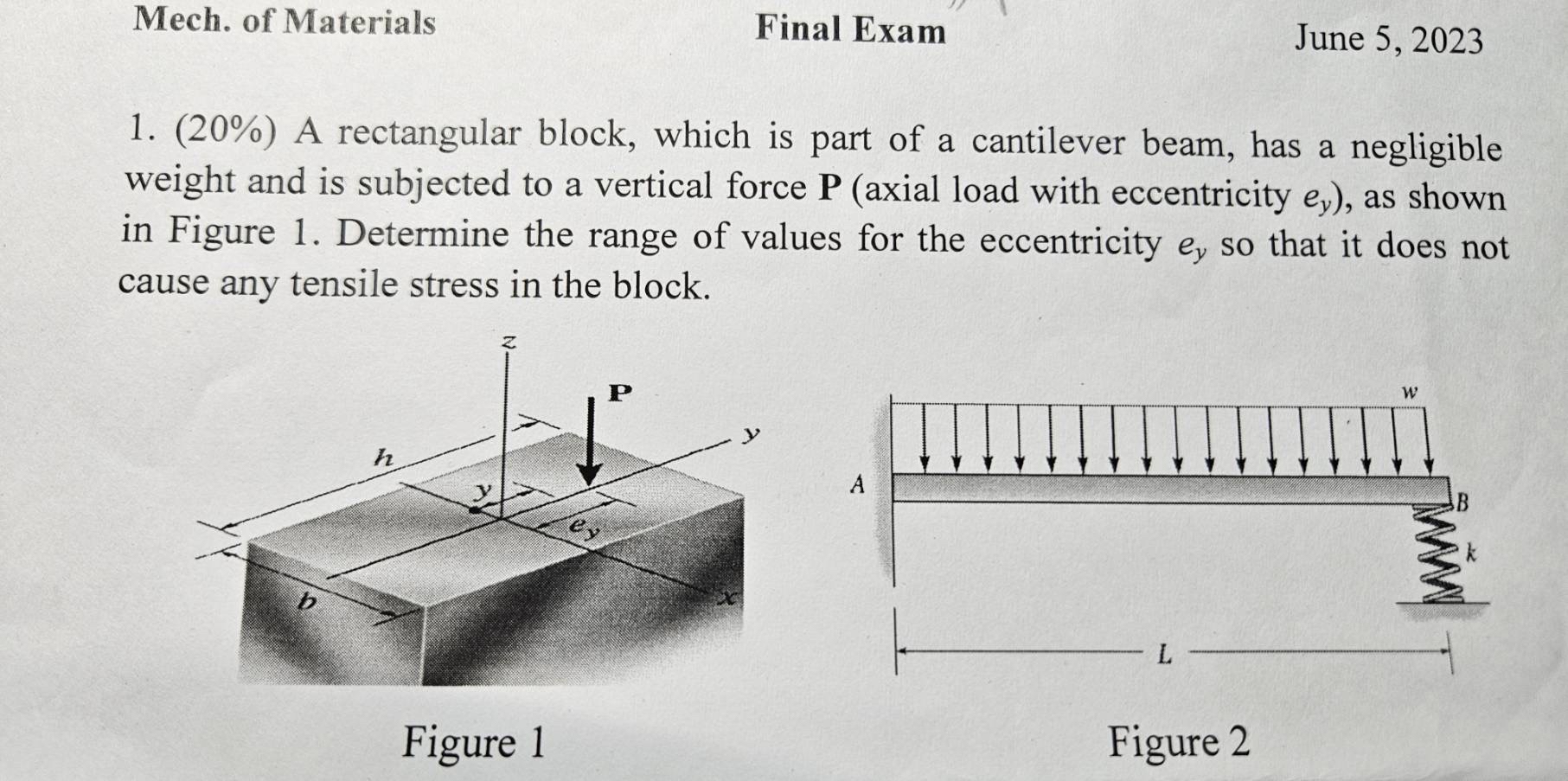

(20%) A rectangular block, which is part of a cantilever beam, has a negligible weight and is subjected to a vertical force P(axial load with eccentricity ey), as shown in Figure 1. Determine the range of values for the eccentricity ey so that it does not cause any tensile stress in the block.
Figure 1
Mech. of Materials ( 2 0 % ) A rectangular block,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
