Question: Member A B has the angular velocity A B = 3 . 5 r a d s and angular acceleration A B = 6 r

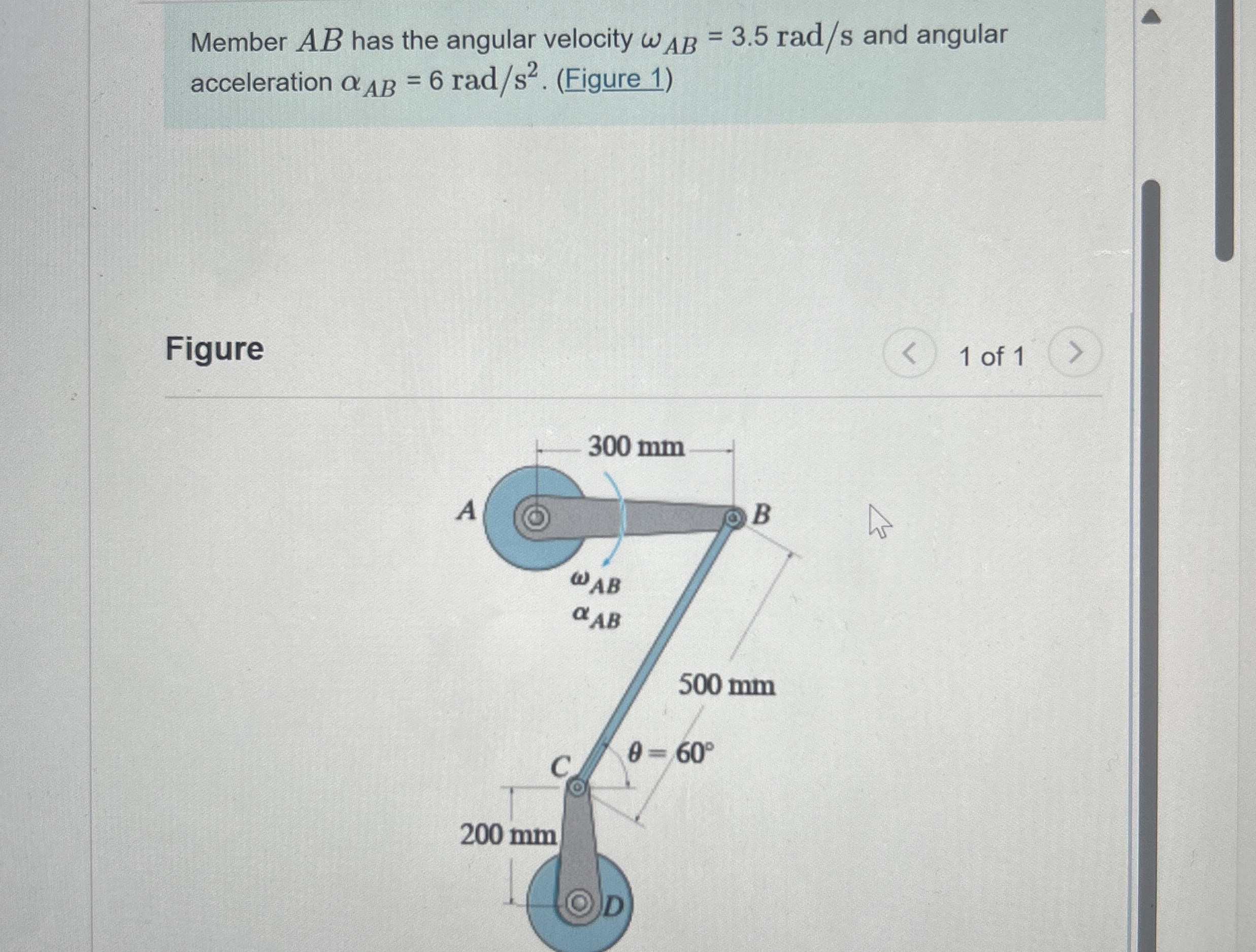

Member AB has the angular velocity AB=3.5rads and angular acceleration AB=6rads2.(Figure 1)
Determine the angular velocity of member CD at the instant shown.
Member A B has the angular velocity A B = 3 . 5 r

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
