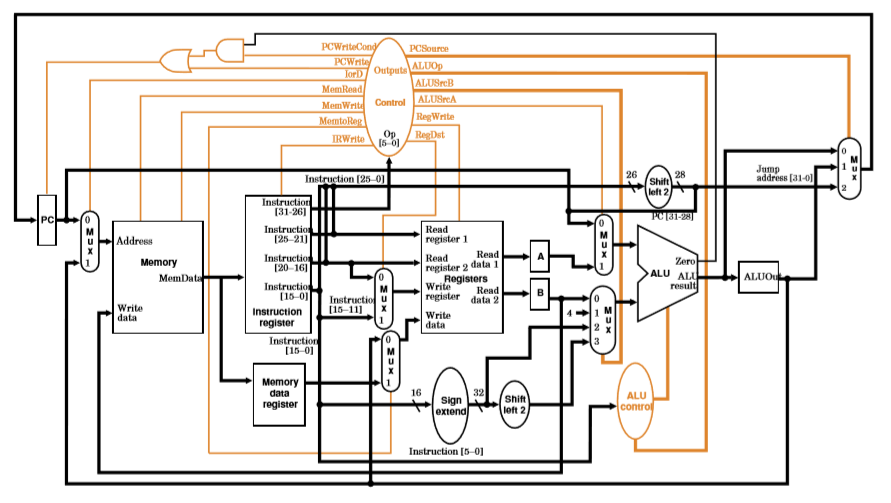

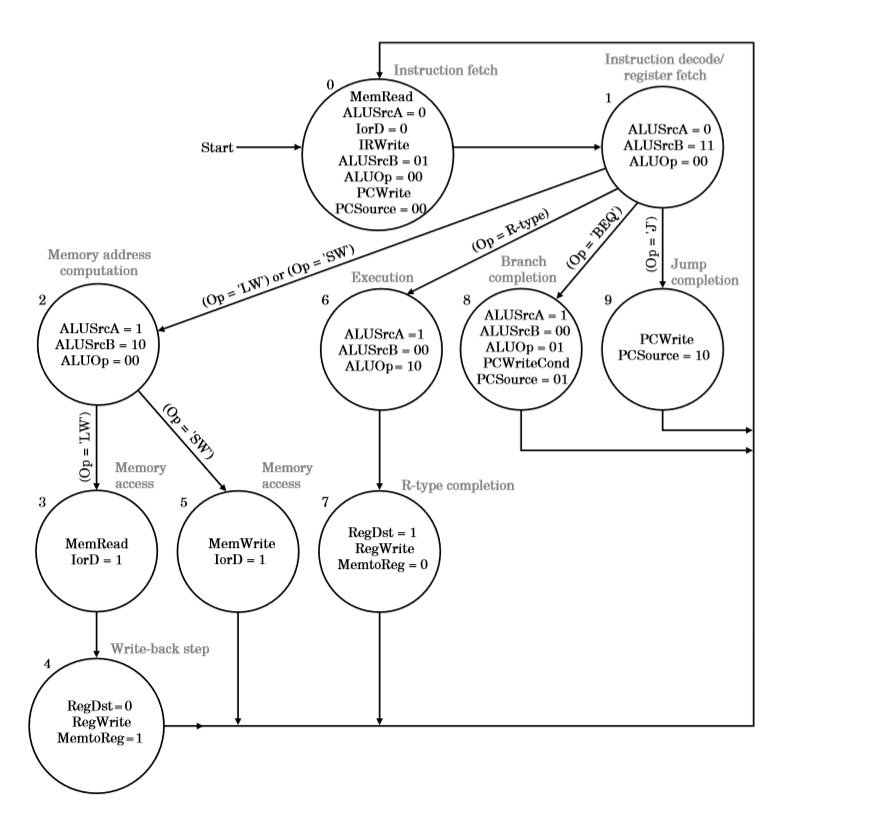

Modify the datapath and control for the multicycle implementation to add the jal (jump and link) instruction. Remember that the jal instruction is likeaj (jump) instruction, but it also places the address of the instruction following the jal instruction in register $31 as a return address. Examine the figures belowand on the following page showing the datapath and the finite state machine (FSM) control for the multicycle implementation, respectively.M akethe appropriate modifications to both the datapath and the FSM control figures to support the jal instruction.
