Multi-Source Circuit Analysis 2

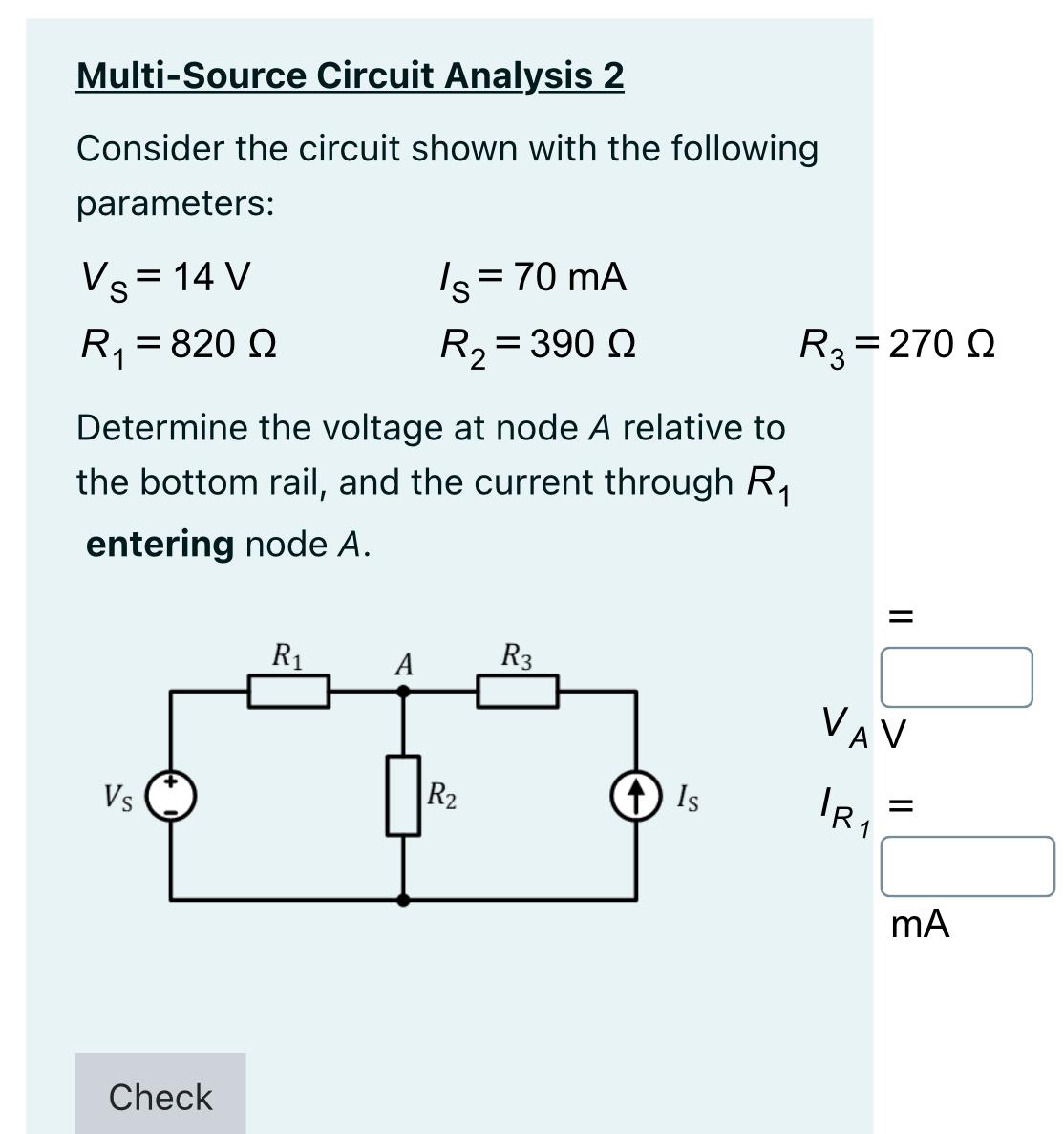

Consider the circuit shown with the following parameters:
VS=14V,IS=70mA
R1=820,R2=390
Determine the voltage at node A relative to the bottom rail, and the current through R1 entering node A.
=
VAV
IR1=
mA
