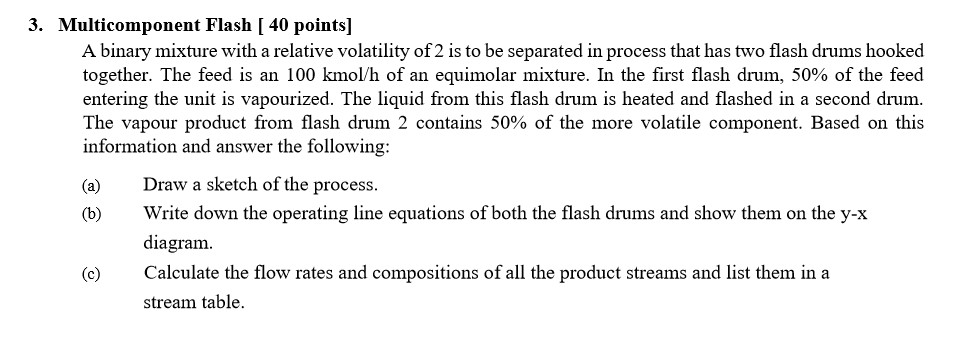

Multicomponent Flash [ 40 points]\ A binary mixture with a relative volatility of 2 is to be separated in process that has two flash drums hooked\ together. The feed is an

100kmo(l)/(h)

of an equimolar mixture. In the first flash drum,

50%

of the feed\ entering the unit is vapourized. The liquid from this flash drum is heated and flashed in a second drum.\ The vapour product from flash drum 2 contains

50%

of the more volatile component. Based on this\ information and answer the following:\ (a) Draw a sketch of the process.\ (b) Write down the operating line equations of both the flash drums and show them on the y-x\ diagram.\ (c) Calculate the flow rates and compositions of all the product streams and list them in a\ stream table.

Multicomponent Flash [ 40 points] A binary mixture with a relative volatility of 2 is to be separated in process that has two flash drums hooked together. The feed is an 100kmol/h of an equimolar mixture. In the first flash drum, 50% of the feed entering the unit is vapourized. The liquid from this flash drum is heated and flashed in a second drum. The vapour product from flash drum 2 contains 50% of the more volatile component. Based on this information and answer the following: (a) Draw a sketch of the process. (b) Write down the operating line equations of both the flash drums and show them on the yx diagram. (c) Calculate the flow rates and compositions of all the product streams and list them in a stream table
