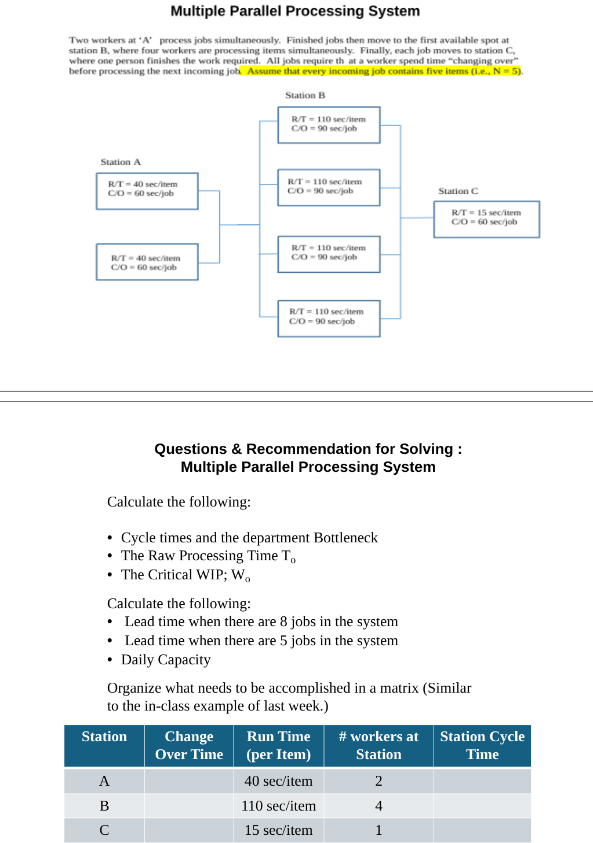

Multiple Parallel Processing System

Two workers at $\text{'}A\text{'}$ process jobs simultaneously. Finished jobs then move to the first available spot at

station B$,$ where four workers are processing items simultaneously. Finally, each job moves to station C$,$

where one person finishes the work required. All jobs require th at a worker spend time "changing over"

before processing the next incoming joh Assume that every incoming job contains five items $($i$.$e$.,N=5).$

Questions & Recommendation for Solving :

Multiple Parallel Processing System

Calculate the following:

Cycle times and the department Bottleneck

The Raw Processing Time $T_0$

The Critical WIP; $W_0$

Calculate the following:

Lead time when there are $8$ jobs in the system

Lead time when there are $5$ jobs in the system

Daily Capacity

Organize what needs to be accomplished in a matrix $($Similar

to the in$-$class example of last week.$)$
