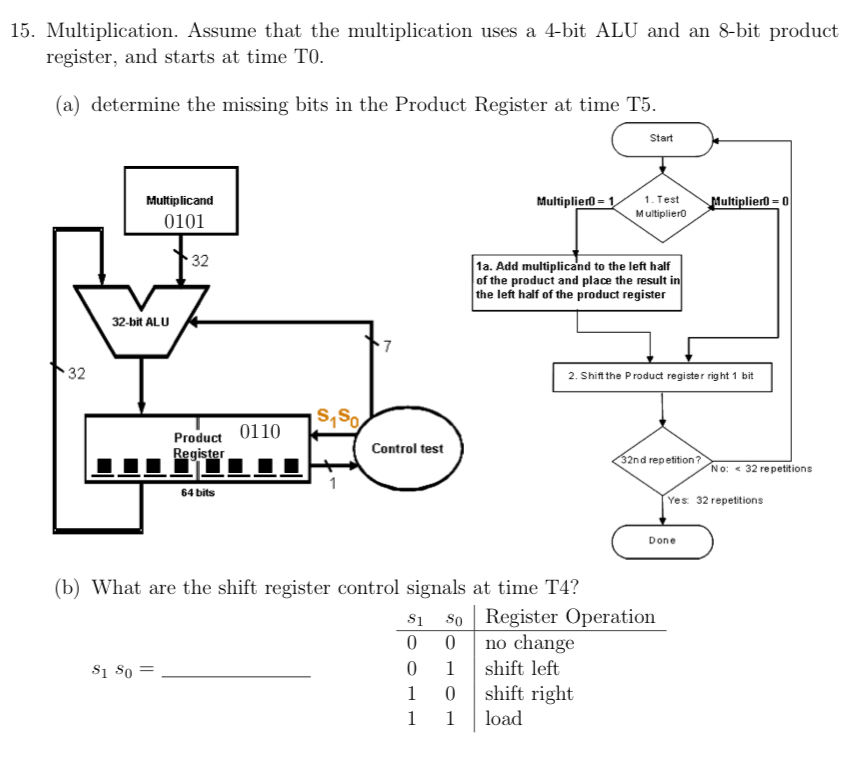

Question: Multiplication. Assume that the multiplication uses a 4 - bit ALU and an 8 - bit product register, and starts at time T 0 .

Multiplication. Assume that the multiplication uses a 4-bit ALU and an 8-bit product register, and starts at time T0.
(a) determine the missing bits in the Product Register at time T5.
(b) What are the shift register control signals at time T4?
\table[[s_(1),s_(0),Register Operation],[0,0,no change],[0,1,shift left],[1,0,shift right],[1,1,load]]
Multiplication. Assume that the multiplication

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
