Industry Print Exercise $9-1$

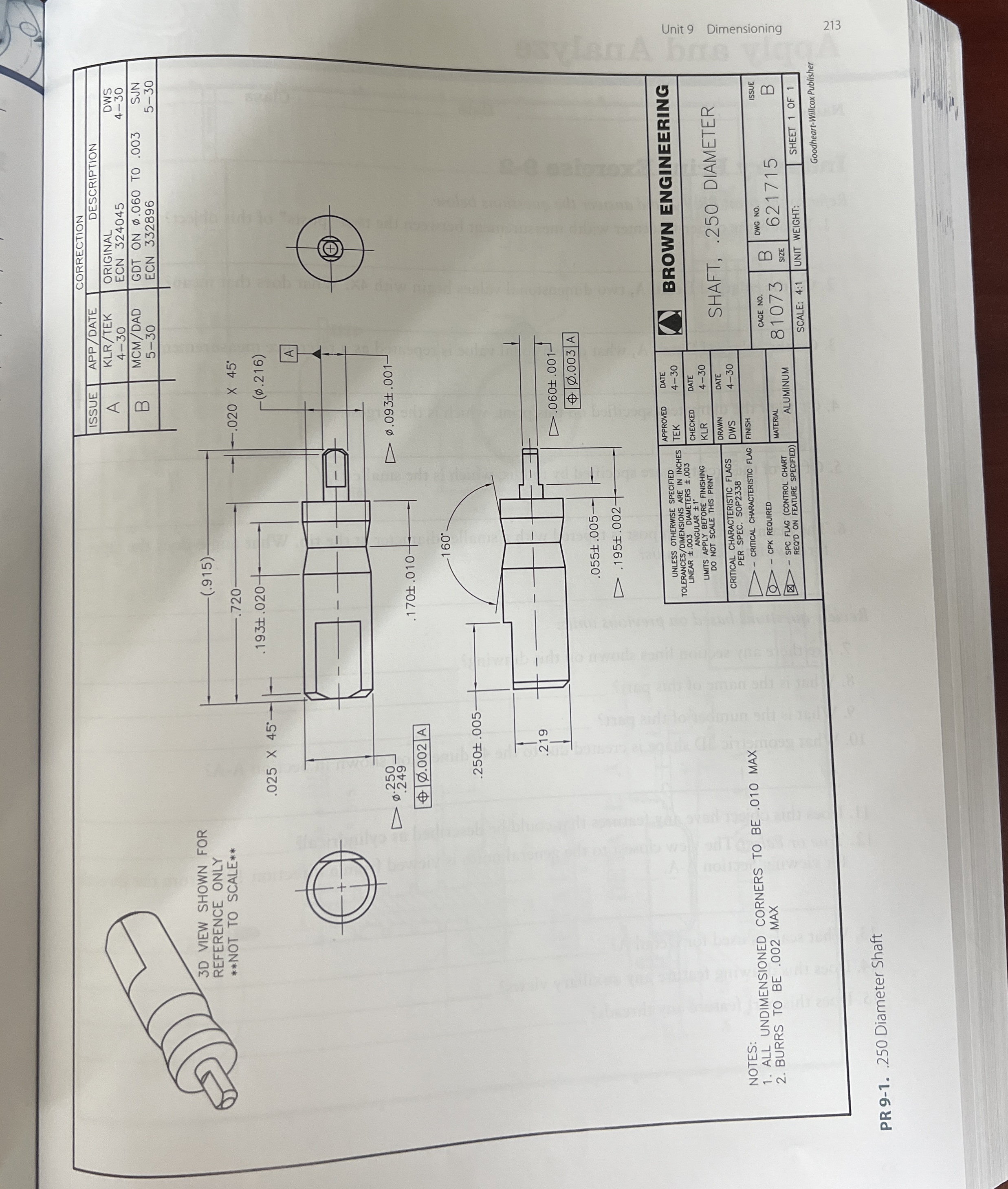

Refer to the print PR $9-1$ and answer the questions below.

How many angular dimensions are shown on this print?

How many reference dimensions are shown on this print?

Did the creator of this print follow the cylinder rule for the overall diameter?

Does this print use the aligned system or the unidirectional system?

How many local notes with leader lines are there on this print?

Counting reference dimensions, how many diameters are specified?

Review questions based on previous units:

What paper size is the original version of this print?

What is the material for this part?

What is the name of this part?

What is the part number of this print?

To what scale is the part drawn on the original drawing ${?}^2$

Does this print use SI or US customary units?

How many "through holes" does this object have:

Counting all surfaces of the object, how many are noncylindrical planar surfaces?

Does this drawing feature any section views?
