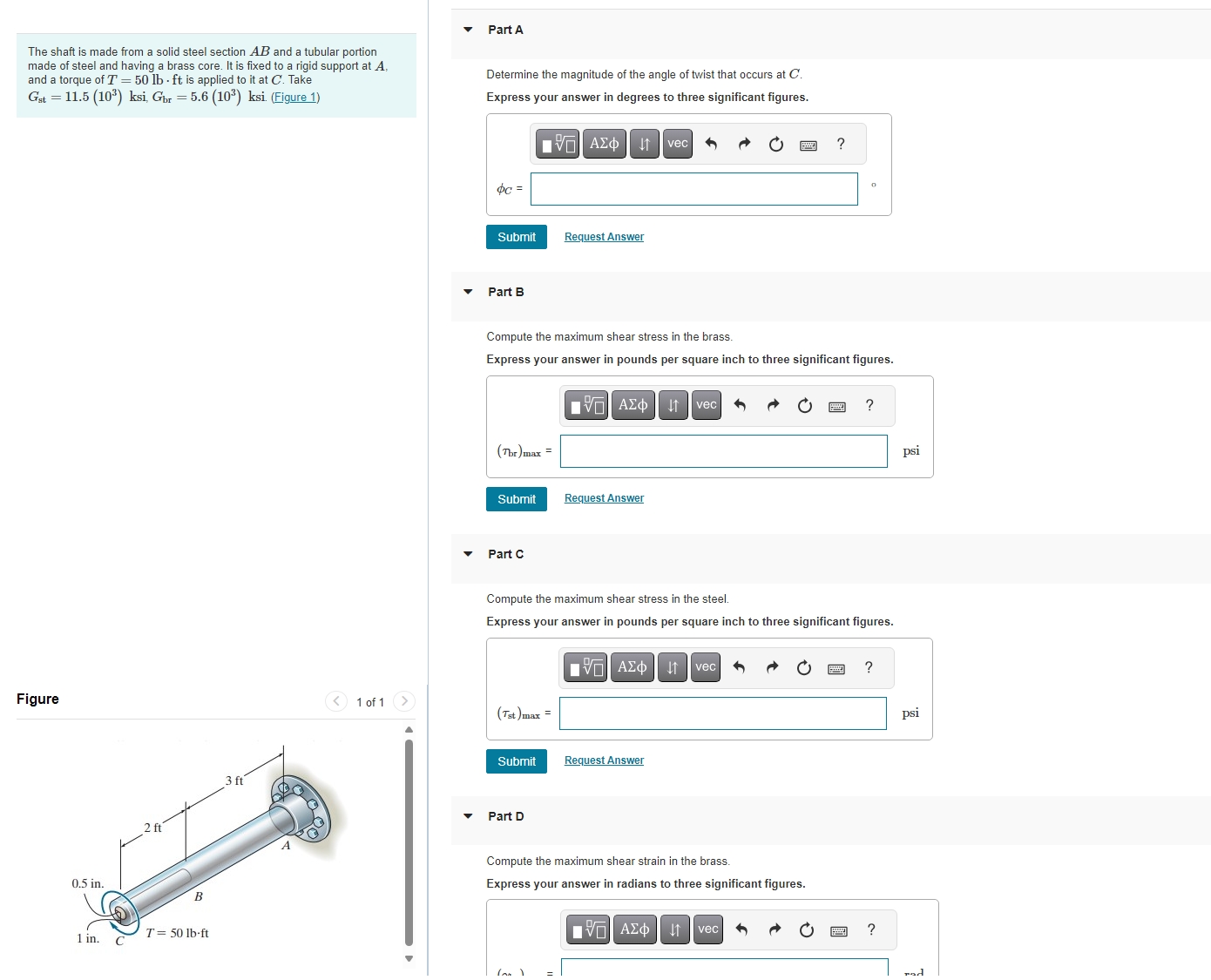

The shaft is made from a solid steel section $AB$ and a tubular portion

made of steel and having a brass core. It is fixed to a rigid support at $A,$

and a torque of $T=50lb*ft$ is applied to it at $C.$ Take

$G_{st}=11\mathrm{.}5({10}^3)ksi,G_{br}=5\mathrm{.}6({10}^3)ksi($Figure $1)$

Part A

Determine the magnitude of the angle of twist that occurs at $C.$

Express your answer in degrees to three significant figures.

Part B

Compute the maximum shear stress in the brass.

Express your answer in pounds per square inch to three significant figures.

$({}_{br}{)}_{\text{m}\text{a}\text{x}}=,$

Part C

Compute the maximum shear stress in the steel.

Express your answer in pounds per square inch to three significant figures.

Figure

Request Answer

Part D

Compute the maximum shear strain in the brass.

Express your answer in radians to three significant figures.
