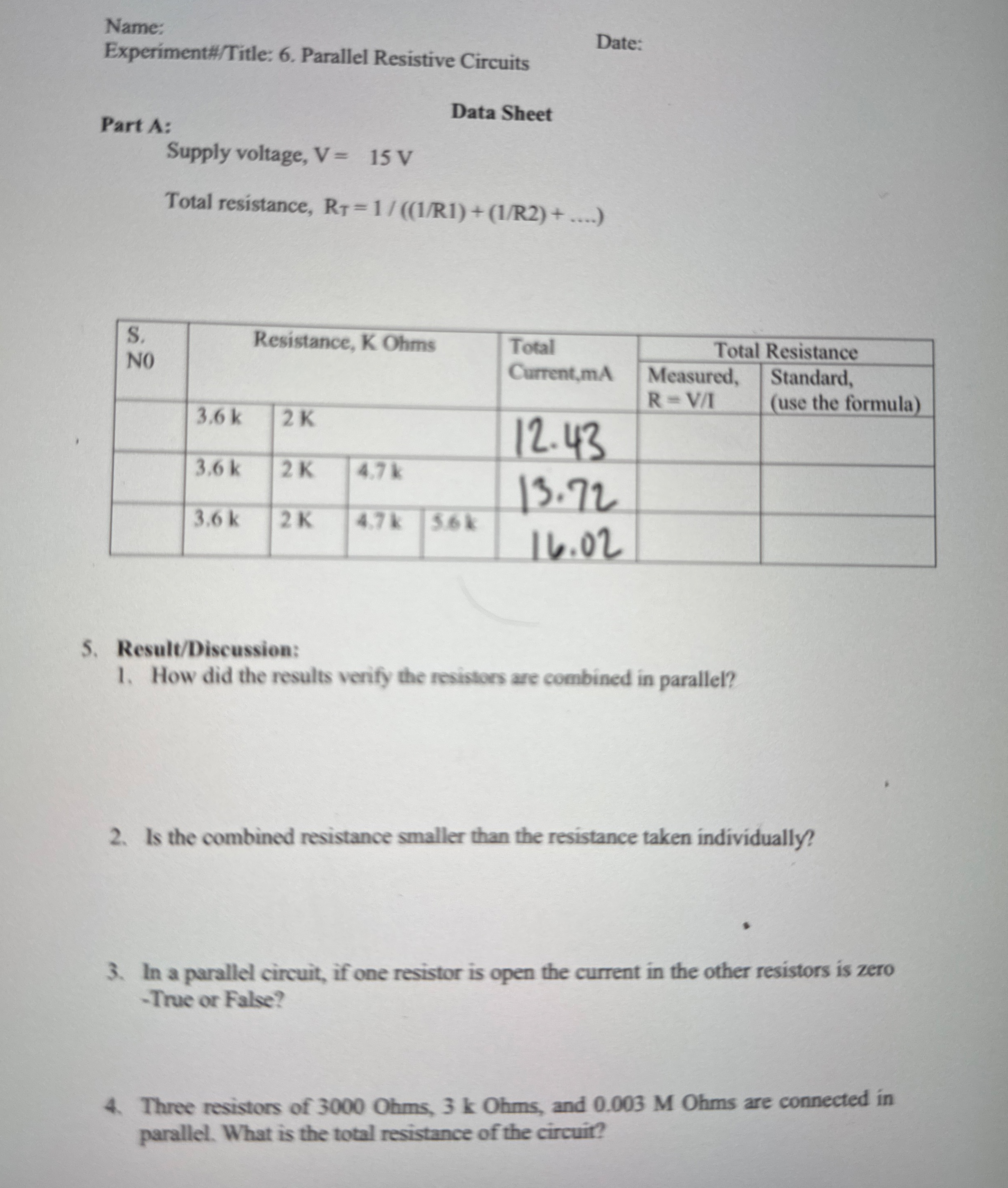

Name:

Experiment#Title: $6.$ Parallel Resistive Circuits

Date:

Data Sheet

Part A:

Supply voltage, $V=15V$

Total resistance, $.$

$\backslash$table$[[\left[\begin{array}{c}S.\\ NO\end{array}\right],$Resistance, K Ohms,Total Current,mA$,$Total Resistance$],[$Measured$,R=\frac{V}{f},$Standard, $($use the formula$)],[3\mathrm{.}6$ k$,2$ K$,12\mathrm{.}12,,],[,3\mathrm{.}6$ k$,2$ K$,4\mathrm{.}7$ k$,,,],[,3\mathrm{.}6$ k$,2$ K$,4\mathrm{.}7$ k$,5\mathrm{.}6k,,,]]$

Result$/$Discussion:

How did the results verify the resistors are combined in parallel?

Is the combined resistance smaller than the resistance taken individually?

In a parallel circuit, if one resistor is open the current in the other resistors is zero $-$ True or False?

Three resistors of $3000$ Ohms, $3$ k Ohms, and $0\mathrm{.}003$ M Ohms are connected in parallel. What is the total resistance of the circuit?
