Name:

Grade:

$($If your PID is $"5684659",$ then $A=5,B=6,C=8,D=4,E=6,F=5$ and $G=9)$

PID $=$

$A=$

$B=$

$C=q,$

$D=$

$E=q,$

$F=q,G=$

NOTE: Use extra pages if required. Submit through canvas as a single pdf file.

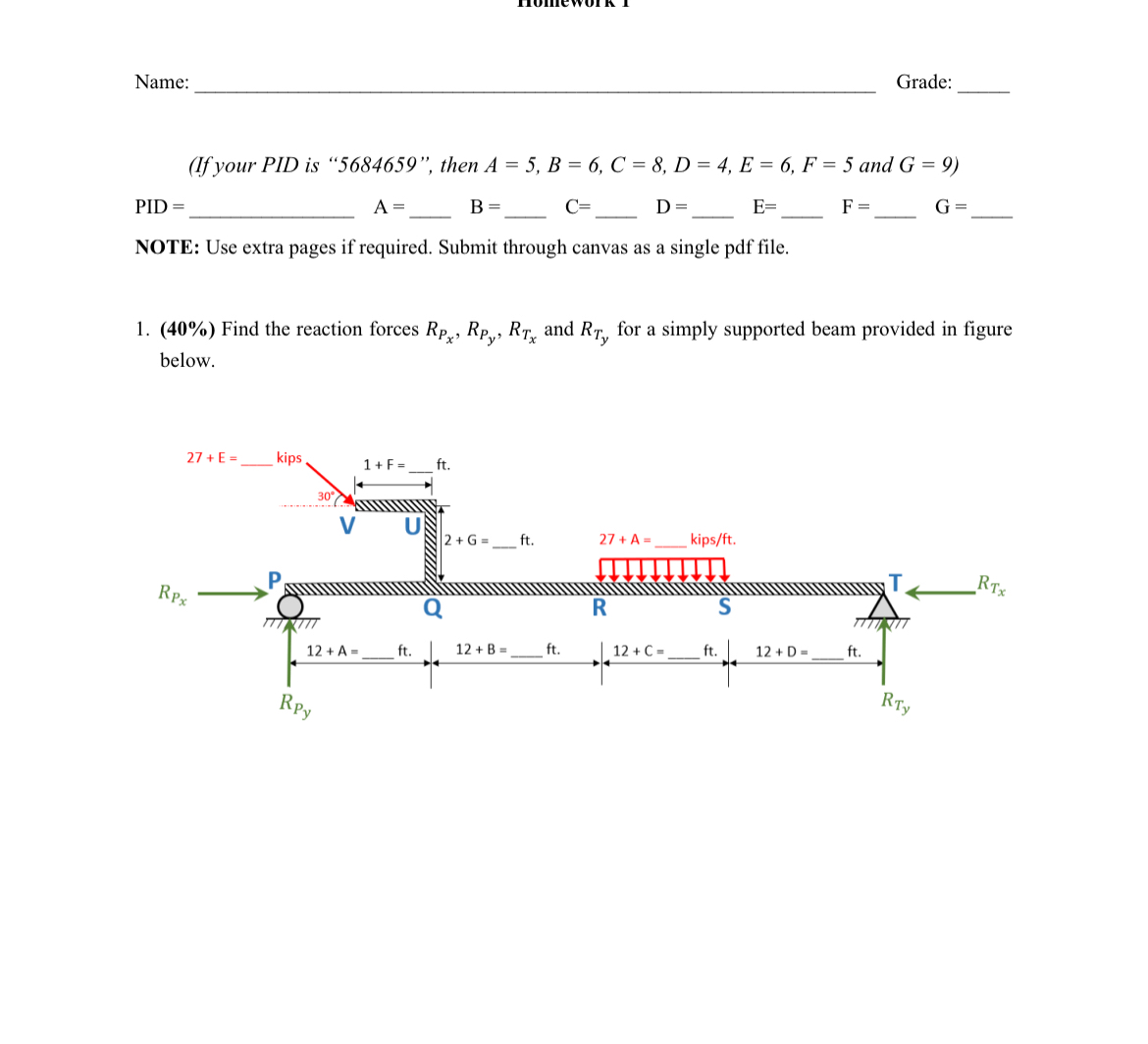

$(40\%))$ Find the reaction forces $R_{P_x},R_{P_y},R_{T_x}$ and $R_{T_y}$ for a simply supported beam provided in figure below.
