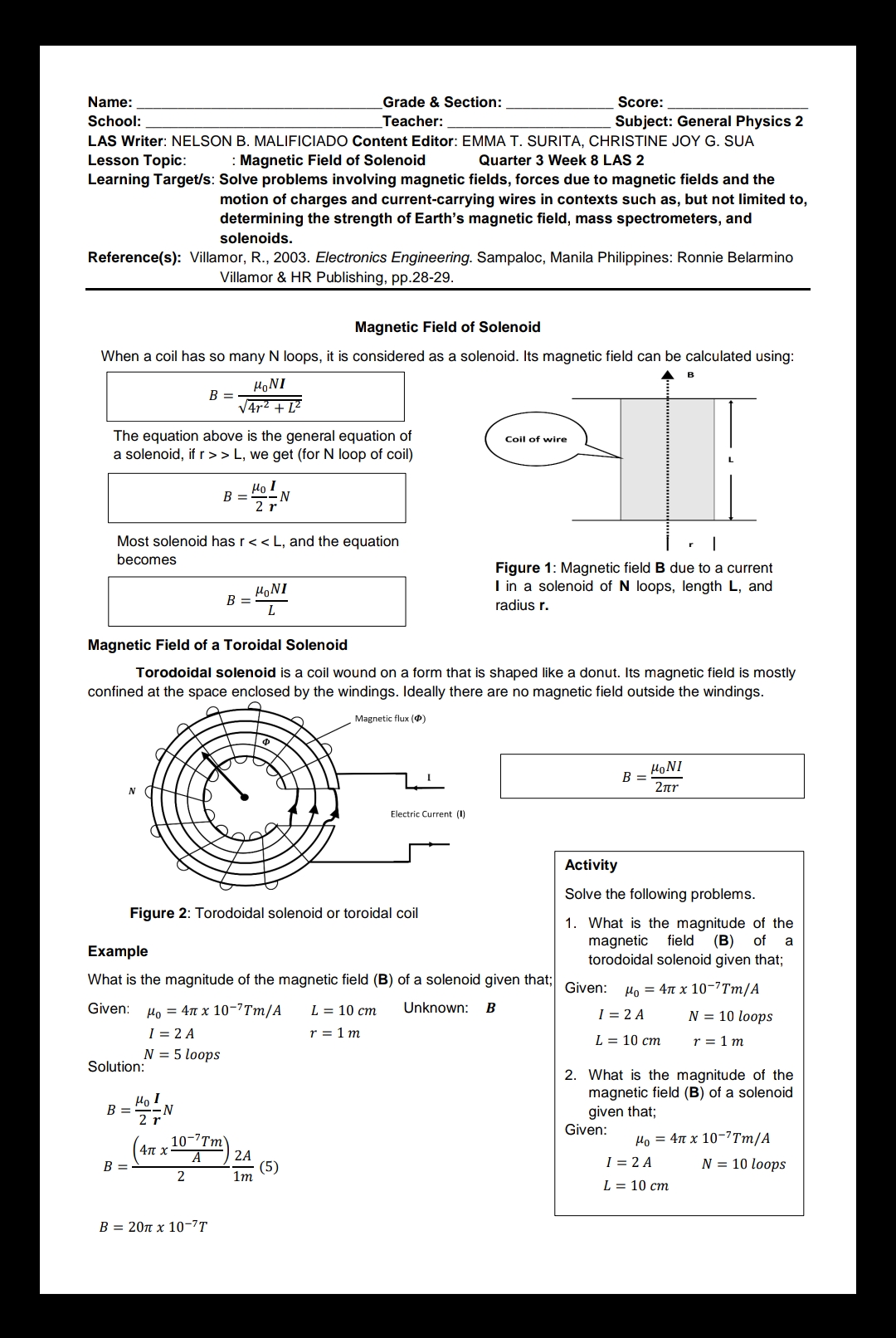

Name: Grade & Section: Score: School: Teacher: Subject: General Physics 2 LAS Writer: NELSON B. MALIFICIADO Content Editor: EMMA T. SURITA, CHRISTINE JOY G. SUA Lesson Topic: : Magnetic Field of Solenoid Quarter 3 Week 8 LAS 2 Learning Target/s: Solve problems involving magnetic fields, forces due to magnetic fields and the motion of charges and current-carrying wires in contexts such as, but not limited to, determining the strength of Earth's magnetic field, mass spectrometers, and solenoids. Reference(s): Villamor, R., 2003. Electronics Engineering. Sampaloc, Manila Philippines: Ronnie Belarmino Villamor & HR Publishing, pp.28-29 Magnetic Field of Solenoid When a coil has so many N loops, it is considered as a solenoid. Its magnetic field can be calculated using: B B = - HONI V4r2 + L The equation above is the general equation of Coil of wire a solenoid, if r > > L, we get (for N loop of coil) B = 2r Most solenoid has r
