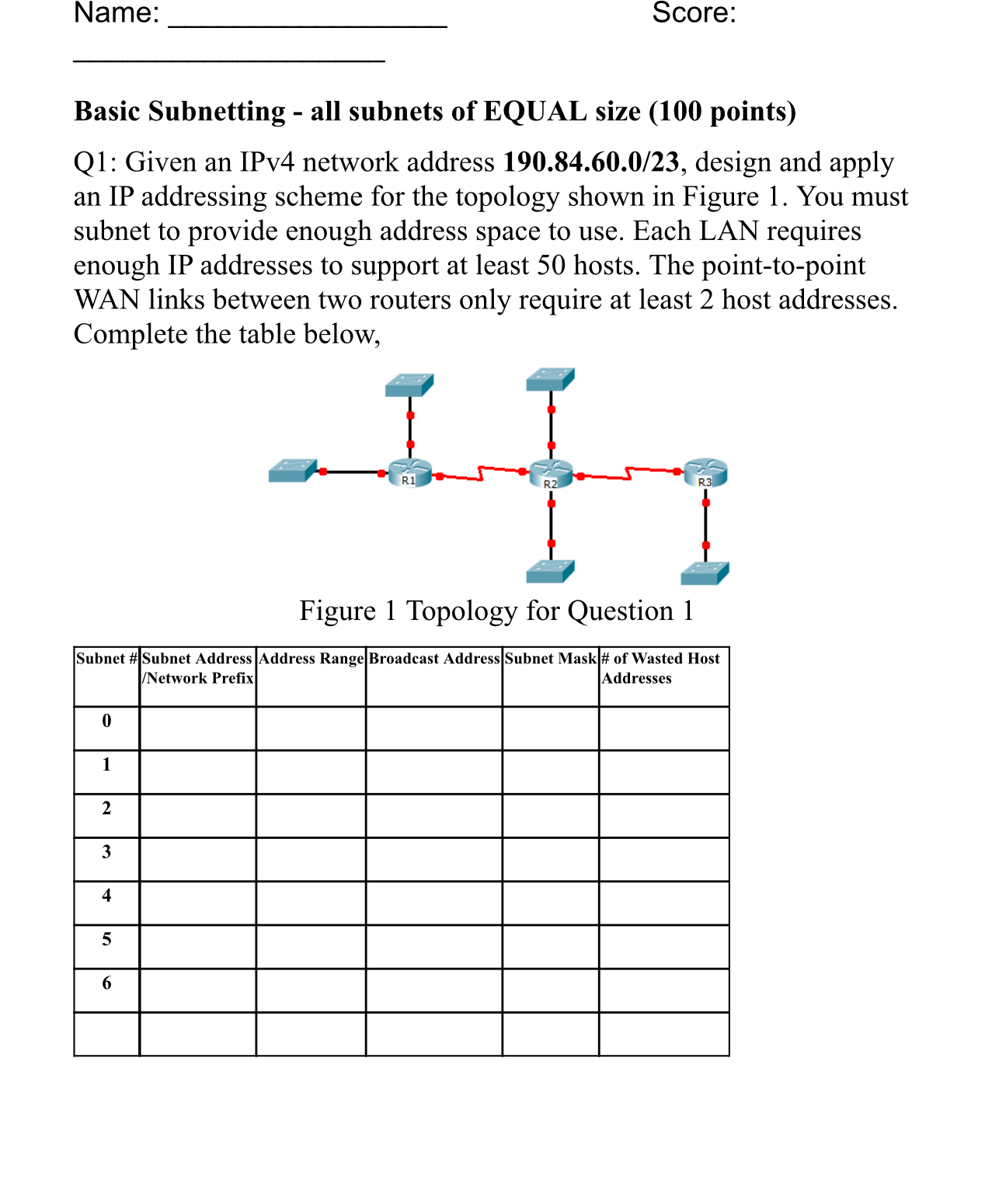

Basic Subnetting $-$ all subnets of EQUAL size $(100$ points$)$

Q$1$: Given an IPv$4$ network address $190\mathrm{.}84.\frac{60\mathrm{.}0}{23},$ design and apply an IP addressing scheme for the topology shown in Figure $1.$ You must subnet to provide enough address space to use. Each LAN requires enough IP addresses to support at least $50$ hosts. The point$-$to$-$point WAN links between two routers only require at least $2$ host addresses. Complete the table below,

Figure $1$ Topology for Question $1$

$\backslash$table$[[$Subnet$,\backslash$table$[[$Subnet Address$],[$Network Prefix$]],$Address Range,Broadcast Address,Subnet Mask,$\backslash$table$[[$# of Wasted Host$],[$Addresses$]]],[0,,,,,],[1,,,,,],[2,,,,,],[3,,,,,],[4,,,,,],[5,,,,,],[6,,,,,],[,,,,,]]$
