Need a Container diagram for the case study given below:

Case study:

Eclinicx is going to be the biggest online treatment portal where patients and doctors can be registered with their relevant information.

When doctors will be registered then they will enter their name, qualification, mobile number, email id and PMDC certification, which will be verified PMDC service automatically. OTP and email will be delivered email server and SMS service in order to make sure that the registered doctor is a valid doctor. Doctors with heart, skin and dentist specialization can be registered for the time beings.

When patient will be registered then they will just need to give their mobile number and OTP will be sent to patients for mobile verification. Like doctors, patients with some specific diseases can be registered like heart, skin or dental issues.

Once patient is logged in with his / her mobile number, OTP will be sent again in order to verify the valid patient. Once patient is logged in, patient can book appointment with any registered doctor on his / her given time slots or schedule. Once appointment is booked, patient can visit the clinic or hospital and can get the online prescription which he or any doctor can see in future reference.

All of the patient, doctor and prescription info will be stored in the centralized server. If system need to send some generic or discount offers then system can sent the bulk sms info to all of the patients on their mobile numbers.

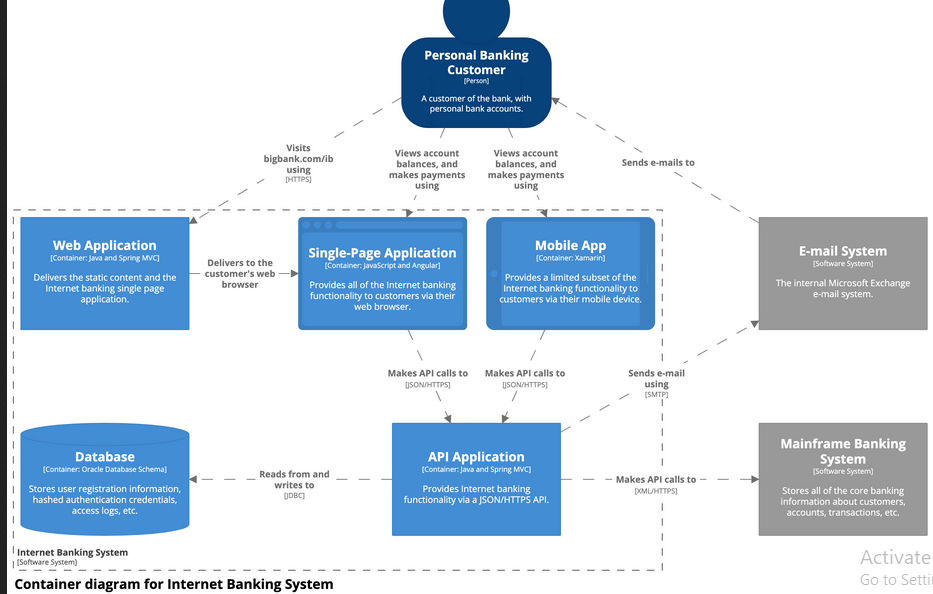

Container Diagram looks like :

Personal Banking Customer [Person A customer of the bank, with personal bank accounts. Visits bigbank.com/ib using [HTTPS Sends e-mails to Views account balances, and makes payments using Views account balances, and makes payments using Web Application (Container: Java and Spring MVC Delivers the static content and the Internet banking single page application Delivers to the customer's web browser Single-Page Application (Container. JavaScript and Angular) Provides all of the Internet banking functionality to customers via their web browser. Mobile App (Container: Xamarin) Provides a limited subset of the Internet banking functionality to customers via their mobile device. E-mail System (Software System) The internal Microsoft Exchange e-mail system Makes API calls to USONI HTTPS Makes API calls to USON/HTTPS: Sends e-mail using (SMTP Database Container Oracle Database Schema] Stores user registration information, hashed authentication credentials, access logs, etc. Reads from and writes to UDBC) API Application (Container: Java and Spring MVC) Provides Internet banking functionality via a JSON/HTTPS API. Makes API calls to DXMLHTTPS Mainframe Banking System Software System) Stores all of the core banking information about customers, accounts, transactions, etc. Internet Banking System Software System Container diagram for Internet Banking System Activate Go to Setti
