Need help creating a g$-$code for this assignment please help. Given$4\mathrm{.}1\mathrm{.}1$ WorkpieceMaterial: $6061$ Aluminum$6061$Aluminum is in VDI $3323$ Group $214\mathrm{.}1\mathrm{.}2$Use Haas P$/$N $03-2065$ as the end mill for all milling operations $($data sheet and speed and feed tables provided$)4\mathrm{.}1\mathrm{.}3$ The Part ReferenceZero $($PRZ$)$ is the upper left corner of the part, not the Machine Home position $($point $1)$ Use Haas P$/$N$03-2065$ as the end mill for all milling operations $($data sheet and speed and feed tables provided$)2/115$InstructionsFor Exercise $1$ andExercise $2($below$),$ write a G $-$ Code part program by defining the toolpath $($ center of the tool$),$ as described in class. This will require mathematical calculations$\mathrm{.}5\mathrm{.}1$ Circular Interpolations:For G$02$ and G$03$ use l$,$J$,$ K syntax, not R syntaxExercise $15\mathrm{.}1\mathrm{.}1$ Use the part drawing $($shown below$)$ to create a G $-$ code part program$\mathrm{.}5\mathrm{.}1\mathrm{.}2$ Use your Speed and Feed Calculator Excel file from Lab #$2$ to aid in calculating thespeed and feed rates required$\mathrm{.}5\mathrm{.}1\mathrm{.}3$Perform sample calculations in section $10,$ below. This allows partial credit to be given if the solution is not correct.$*5\mathrm{.}1\mathrm{.}4$ Use the G $-$ Code table, below in section $9,$ to record your G $-$ Code$*5\mathrm{.}1\mathrm{.}5$ To the right of your G $-$ Code, record the function of every word within the block, except the blocks with dash marks $($we have not covered these functions yet$).3/115\mathrm{.}2$ Exercise $25\mathrm{.}2\mathrm{.}1$ After creating a part with the part program from Part $1,$ in section $5\mathrm{.}1,$ above, you measure both the width and length of the part as $0\mathrm{.}008$ oversized. After further investigation you discover the endmill was resharpened, which results in an under $-$ sized cutter diameter versus nominal$\mathrm{.}5\mathrm{.}2\mathrm{.}2$ Rewrite the G $-$ code to adjust for theundersized endmill diameter. You may neglect the speed and feed impacts from the diameter change. Describingthe function of each line of G $-$ Code in Part $2$ is not necessary for exercise$2.5\mathrm{.}36$ Lab Comprehension:Understand the Following$6\mathrm{.}1$ What is the format of a part program name?$6\mathrm{.}2$ What two words are used tochange a tool with an automatic tool changer?$6\mathrm{.}3$ What is the purpose, similarity, and difference between GOO and G$01$ commands?$6\mathrm{.}4$ Logically, why is M$08$ positioned in the block sequence it is in$,$ rather than earlier or later? Could it be earlier in the program? Could it be later in the program?$6\mathrm{.}5$ Did you adjust your feed rate from points $5$ to $6$ and $10$ to $11?$How much, why?$6\mathrm{.}6$ Did you have to perform additional positioncalculations for position $8,9,12,$ and $13?$ Why?$6\mathrm{.}7$ Logically, why is M$08$ positioned in the block sequence it is in$,$ rather than earlier or later? Could it be earlier in the program? Could it be later in the program?$1$:$40$

LTE

Back

Pulse

$\frac{4}{11}$

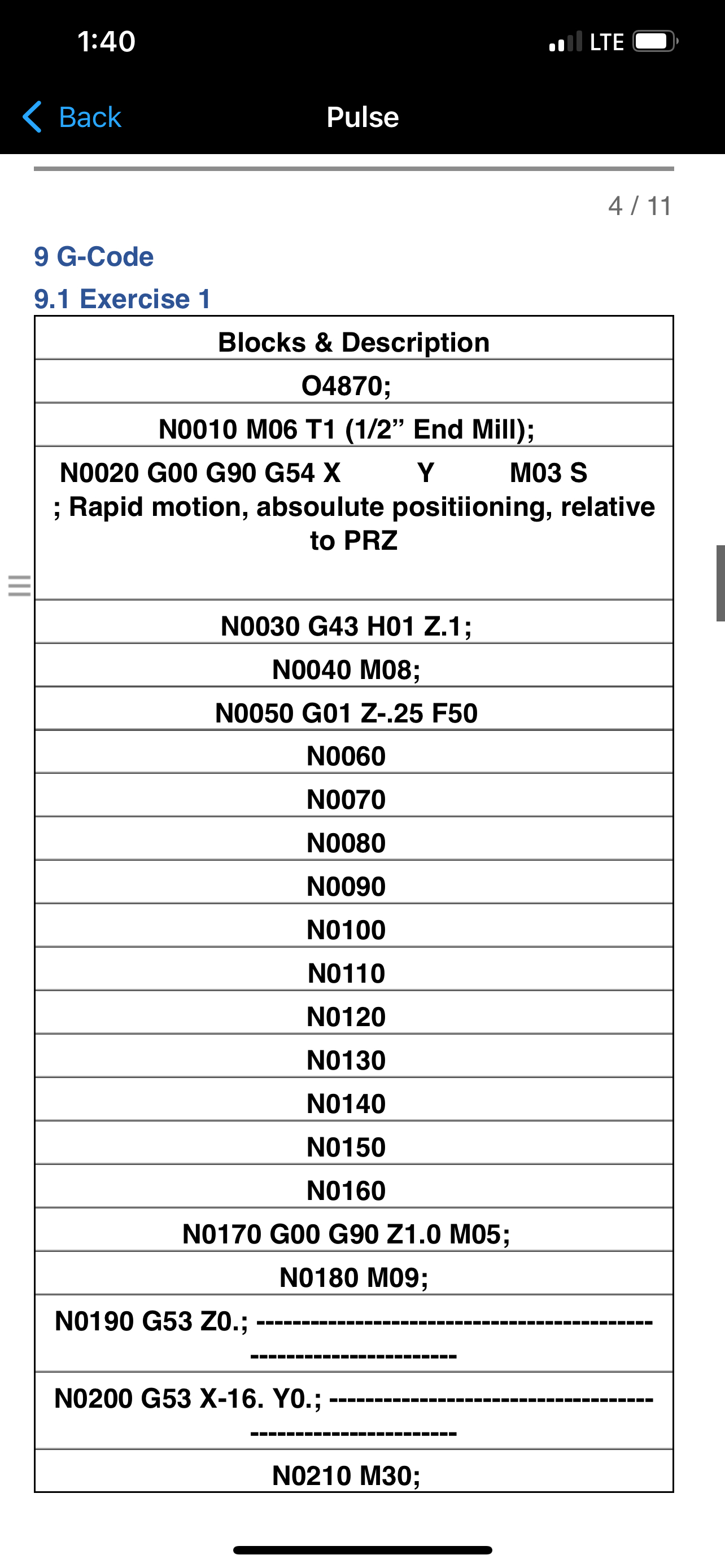

$9$ G$-$Code

$9\mathrm{.}1$ Exercise $1$
