Question: Need help doing this verilog module. Please help! Multiplexed 7-Segment Display Use the following module statement and port list and write a module to multiplex

Need help doing this verilog module. Please help! Multiplexed 7-Segment Display Usethe following module statement and port list and write a module tomultiplex 8 different Hex digits from an array called Data to theNeed help doing this verilog module. Please help!

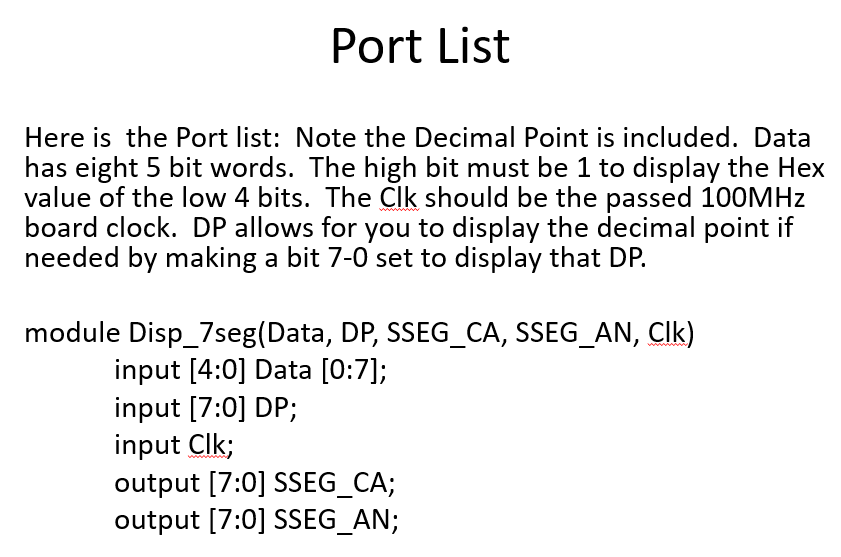

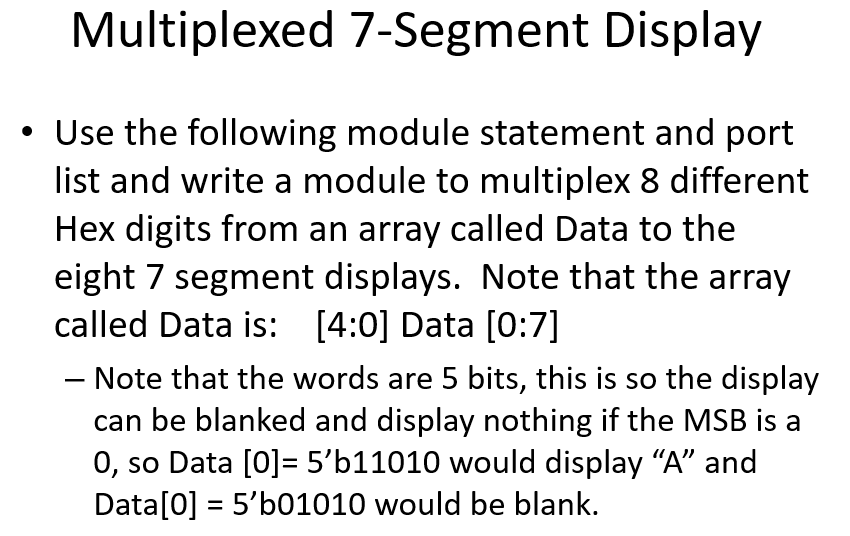

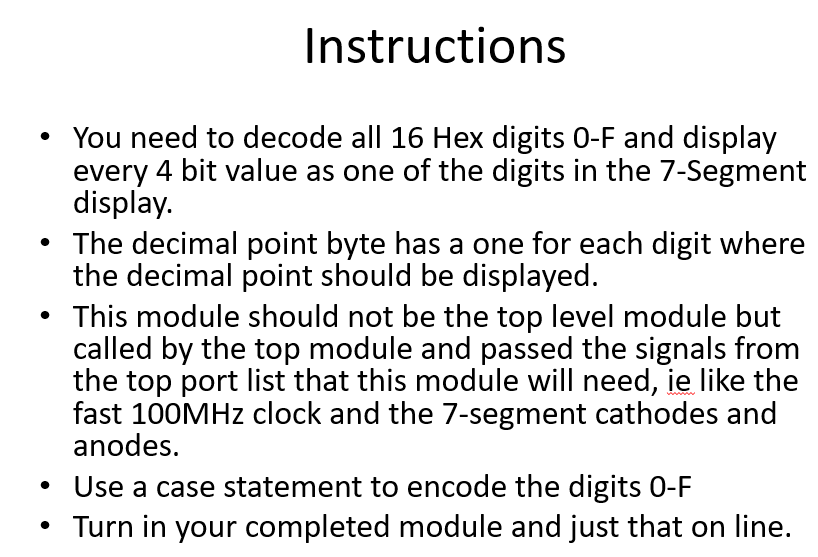

Multiplexed 7-Segment Display Use the following module statement and port list and write a module to multiplex 8 different Hex digits from an array called Data to the eight 7 segment displays. Note that the array called Data is: [4:0] Data [0:7] Note that the words are 5 bits, this is so the display can be blanked and display nothing if the MSB is a o, so Data [ 5,b11010 would display "A" and Data[0] 5'b01010 would be blank. Multiplexed 7-Segment Display Use the following module statement and port list and write a module to multiplex 8 different Hex digits from an array called Data to the eight 7 segment displays. Note that the array called Data is: [4:0] Data [0:7] Note that the words are 5 bits, this is so the display can be blanked and display nothing if the MSB is a o, so Data [ 5,b11010 would display "A" and Data[0] 5'b01010 would be blank
