Question: need help making vhdl code Implement this state machine in VHDL. Use a rising edge resister with synchronous clear and no load. Type the VHDL

need help making vhdl code

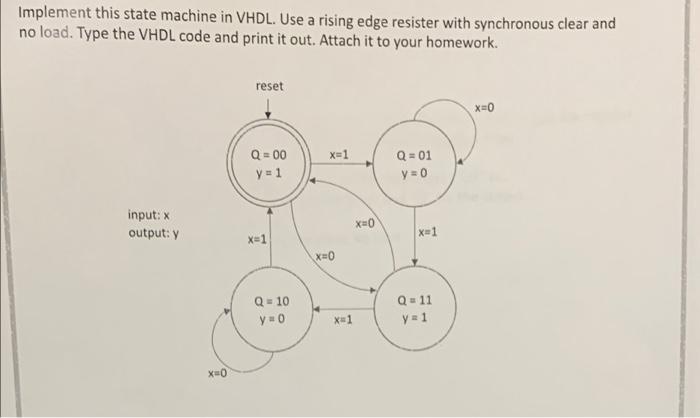

Implement this state machine in VHDL. Use a rising edge resister with synchronous clear and no load. Type the VHDL code and print it out. Attach it to your homework. reset x=0 X=1 Q = 00 y = 1 Q = 01 y = 0 input: x output: Y x=0 X=1 X1 =1 x=0 Q-10 y = 0 Q = 11 y = 1 xa1 XO Implement this state machine in VHDL. Use a rising edge resister with synchronous clear and no load. Type the VHDL code and print it out. Attach it to your homework. reset x=0 X=1 Q = 00 y = 1 Q = 01 y = 0 input: x output: Y x=0 X=1 X1 =1 x=0 Q-10 y = 0 Q = 11 y = 1 xa1 XO
