Question: need help with this lab not sure how to implement this Lab Project Description In this lab project, you have to write a program in

need help with this lab not sure how to implement

need help with this lab not sure how to implement

need help with this lab not sure how to implement this

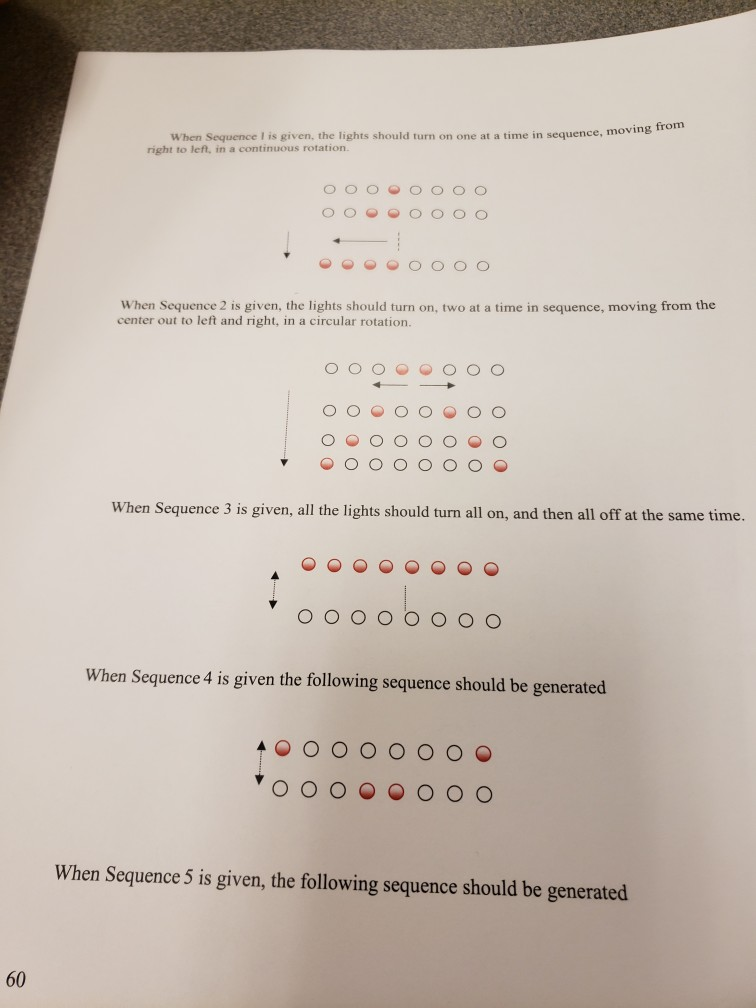

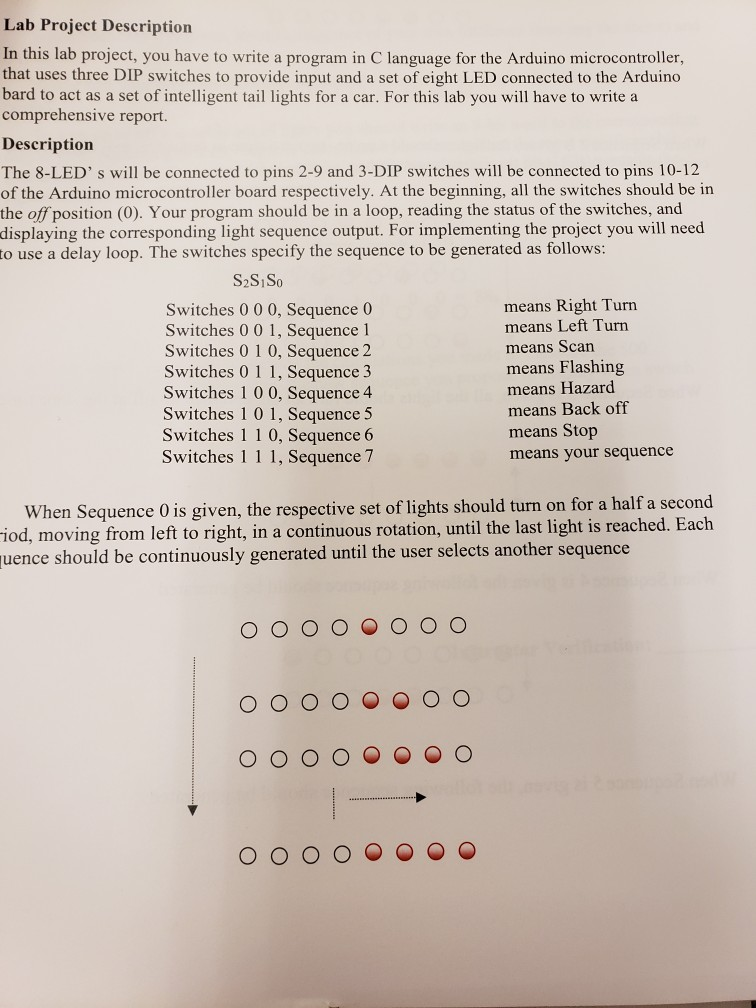

Lab Project Description In this lab project, you have to write a program in C language for the Arduino microcontroller, that uses three DIP switches to provide input and a set of eight LED connected to the Arduino bard to act as a set of intelligent tail lights for a car. For this lab you will have to write a comprehensive report. Description The 8-LED' s will be connected to pins 2-9 and 3-DIP switches will be connected to pins 10-12 of the Arduino microcontroller board respectively. At the beginning, all the switches should be in the off position (0). Your program should be in a loop, reading the status of the switches, and displaying the corresponding light sequence output. For implementing the project you will need to use a delay loop. The switches specify the sequence to be generated as follows: Switches 0 0 0, Sequence 0 Switches 00 1, Sequence 1 Switches 0 1 0, Sequence 2 Switches 0 1 1, Sequence 3 Switches 1 0 0, Sequence 4 Switches 1 0 1, Sequence 5 Switches 1 1 0, Sequence 6 Switches 1 1 1, Sequence 7 means Right Turn means Left Turn means Scan means Flashing means Hazard means Back off means Stop means your sequence When Sequence 0 is given, the respective set of lights should turn on for a half a second iod, moving from left to right, in a continuous rotation, until the last light is reached. Each uence should be continuously generated until the user selects another sequence When Sequence I is given, the lights should turn on one at a time i sequence, moving from right to left, in a continuous rotation OO o When Sequence 2 is given, the lights should turn on, two at a time in sequence, moving from the center out to left and right, in a circular rotation. When Sequence 3 is given, all the lights should turn all on, and then all off at the same time When Sequence 4 is given the following sequence should be generated When Sequence 5 is given, the following sequence should be generated 60
