Need help with this question

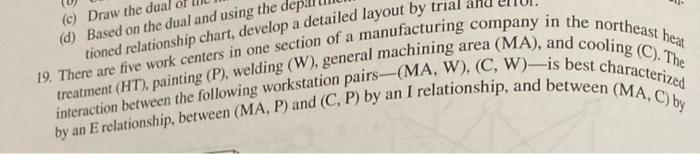

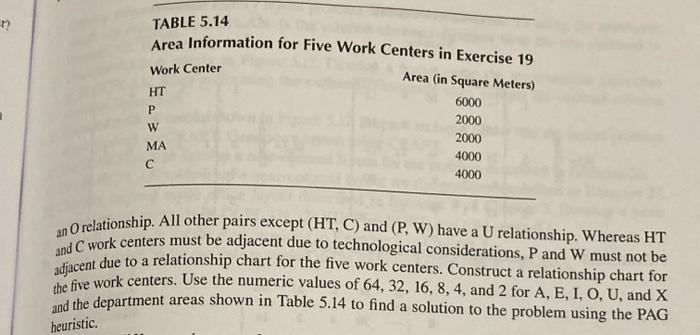

(d) Based on the dual and using the departice layout by trial a tioned relationship chart, develop a detailed layout by trating company in the northeast heat 19. There are five work centers in one section of a machining area (MA), and cooling (C). The treatment (HT), painting (P), welding (W), general warkstation pairs-(MA, W), (C, W)-is best characterized interaction betwecn the following workstation a sairs - (C, P) by an I relationship, and between (MA, C) by TABLE 5.14 Area Information for Five Work Centers in Fvnoni..... an O relationship. All other pairs except (HT, C) and (P, W) have a U relationship. Whereas HT and C work centers must be adjacent due to technological considerations, P and W must not be adjacent due to a relationship chart for the five work centers. Construct a relationship chart for the five work centers. Use the numeric values of 64,32,16,8,4, and 2 for A,E,I,O,U, and X and the department areas shown in Table 5.14 to find a solution to the problem using the PAG heuristic. 5.19 (MPG) Identify the maximal PAG, and develop a block layout based on the MPG and the space requirements by trial and error. You may draw the dual to develop a block layout, or ignore the dual and develop the layout directly from the MPG overlapped by rectangles or other shapes (L, T, U, etc.)
