NEED VHDL DESIGN CODE, TESTBENCH CODE AND WAVEFORMS

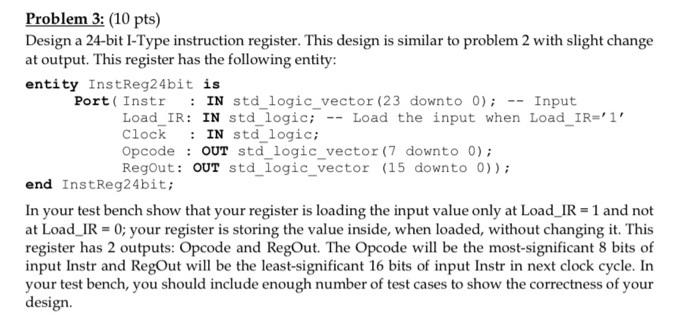

Problem 3: (10 pts) Design a 24-bit I-Type instruction register. This design is similar to problem 2 with slight change at output. This register has the following entity: entity InstReg24bit is Port ( Instr : IN std_logic_vector (23 downto 0); -- Input Load_IR: IN std logic; -- Load the input when Load_IR='1' Clock : IN std_logic; Opcode : OUT std_logic_vector (7 downto 0); Regout: OUT std_logic_vector (15 downto 0)); end InstReg24bit; In your test bench show that your register is loading the input value only at Load_IR = 1 and not at Load_IR = 0; your register is storing the value inside, when loaded, without changing it. This register has 2 outputs: Opcode and RegOut. The Opcode will be the most significant 8 bits of input Instr and RegOut will be the least-significant 16 bits of input Instr in next clock cycle. In your test bench, you should include enough number of test cases to show the correctness of your design
