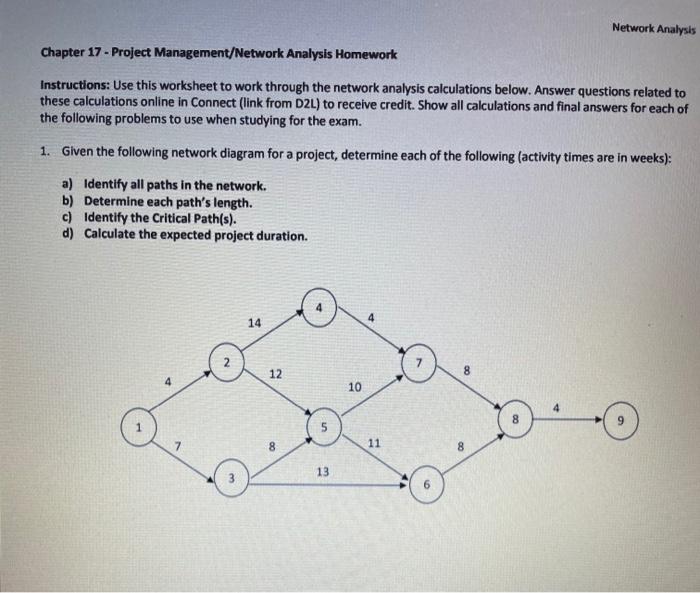

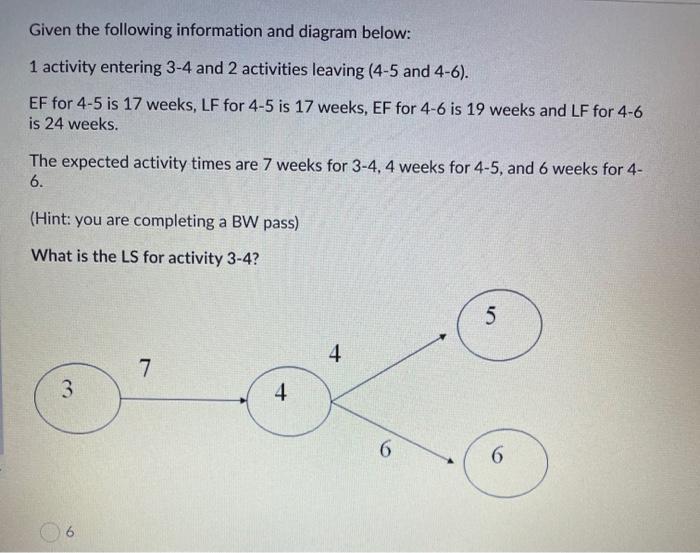

Network Analysis Chapter 17 - Project Management/Network Analysis Homework Instructions: Use this worksheet to work through the network analysis calculations below. Answer questions related to these calculations online in Connect (link from D2L) to receive credit. Show all calculations and final answers for each of the following problems to use when studying for the exam. 1. Given the following network diagram for a project, determine each of the following (activity times are in weeks): a) Identify all paths in the network. b) Determine each path's length. c) Identify the Critical Path(s). d) Calculate the expected project duration 14 4 12 8 10 5 7 8 11 13 3 Given the following information and diagram below: 1 activity entering 3-4 and 2 activities leaving (4-5 and 4-6). EF for 4-5 is 17 weeks, LF for 4-5 is 17 weeks, EF for 4-6 is 19 weeks and LF for 4-6 is 24 weeks. The expected activity times are 7 weeks for 3-4.4 weeks for 4-5, and 6 weeks for 4- 6. (Hint: you are completing a BW pass) What is the LS for activity 3-4? an 4 7. 3 4 6 6
