Network diagramming is a logical, sequential process that requires you to consider the order in which activities should occur to schedule projects as efficiently as possible. Remember that all projects have predecessors, or activities, that must/should occur before the next step within a project plan can take place.

Using a project scheduling application, complete the following:

• Construct a linked bar-chart and an AON diagram for the schedule shown in Figure 6.1 of the textbook. Your schedule must include activity relationships, too. Please note that a Gantt chart that shows activity relationships is called a linked bar-chart.
• Then, insert your network diagrams as appendices in a one- to two-page paper, in the main body of which you identify the steps you took in creating the linked bar-chart and AON diagram.
• Document your lessons learned.
• In your narrative, also explain why the project calendar may impact the project end date.

Irrespective of the computer program you choose, in addition to submitting the native files, you need to insert a snapshot of your work into your submission or convert what you've developed using the computer program to a PDF file, and incorporate that as an appendix to your submission.

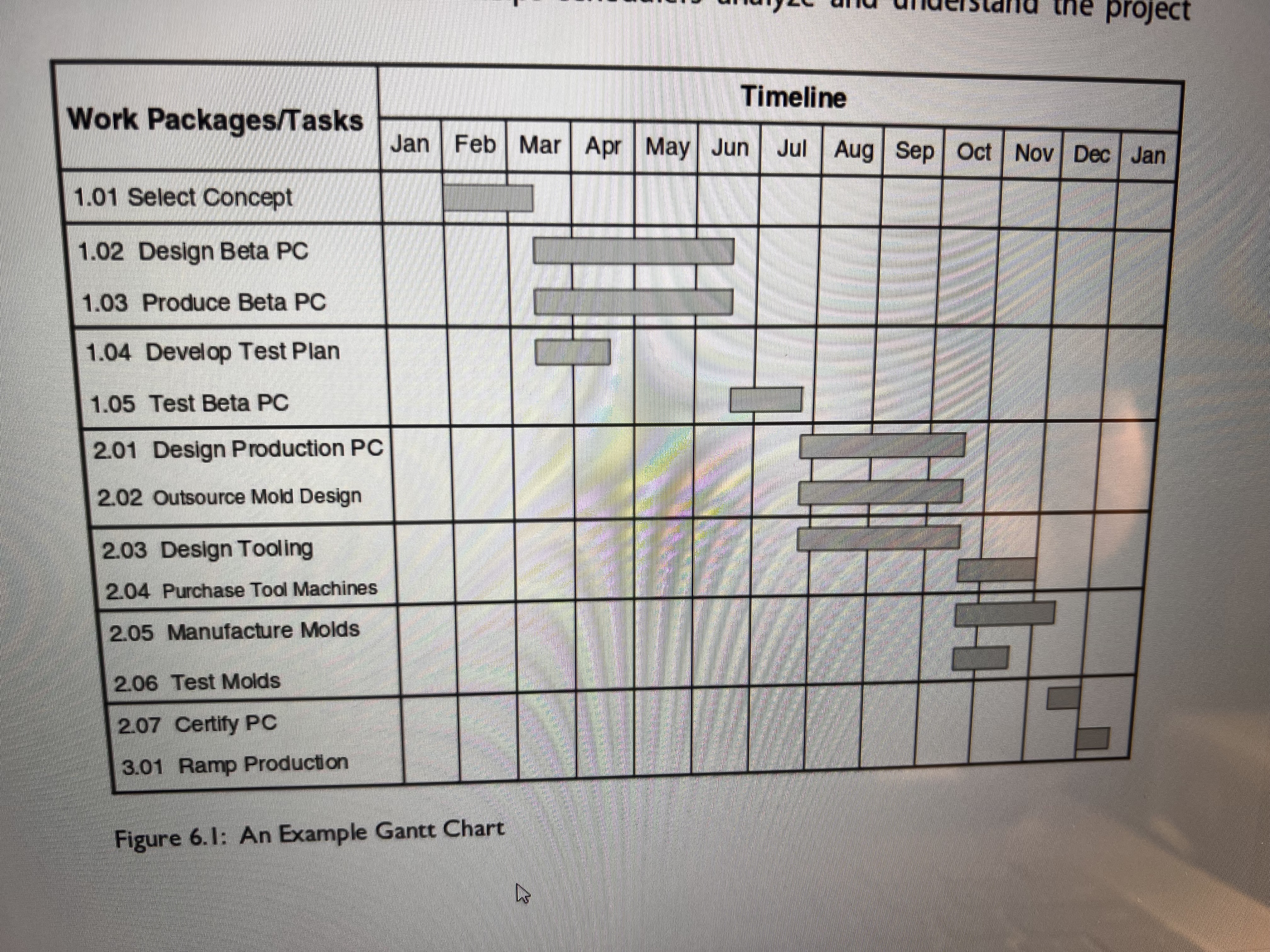

itistand the project Timeline Work Packages/Tasks Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan 1.01 Select Concept 1.02 Design Beta PC 1.03 Produce Beta PC 1.04 Develop Test Plan 1.05 Test Beta PC 2.01 Design Production PC 2.02 Outsource Mold Design 2.03 Design Tooling 2.04 Purchase Tool Machines 2.05 Manufacture Molds 2.06 Test Molds 2.07 Certify PC 3.01 Ramp Production Figure 6.1: An Example Gantt Chart
