Network Layout Identification

Network Component	IP addresses and/or subnet mask
A IP Address
B Subnet Mask
C Default Gateway
D Subnet Mask
E Default Gateway
F Default Gateway
G IP Address
H Subnet Mask
I Default Gateway
J Subnet Mask
K Default Gateway
L IP Address
M Subnet Mask
N Default Gateway
O Subnet Mask
P Default Gateway

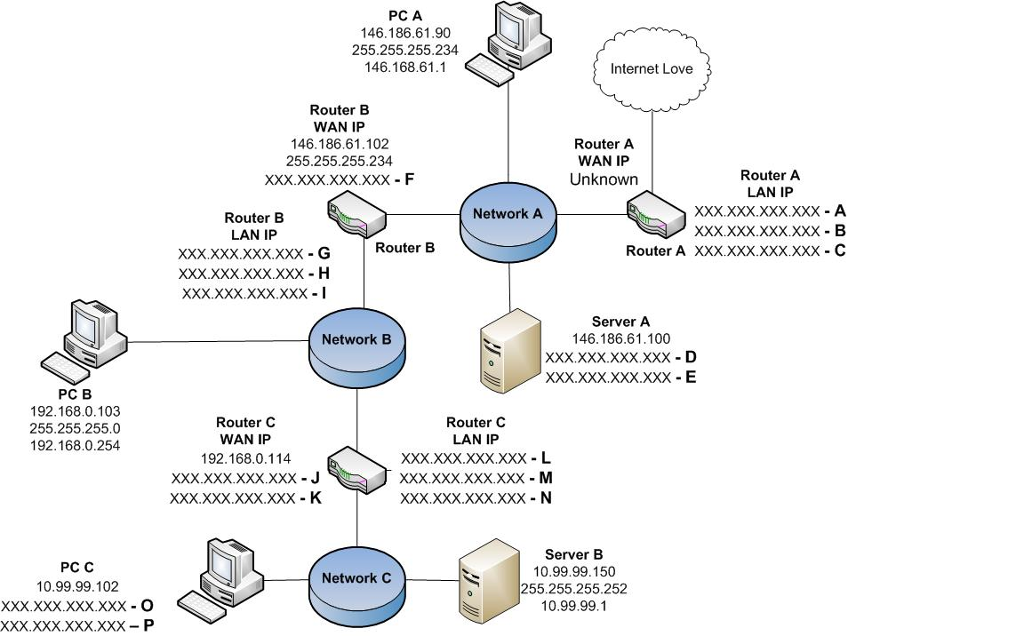

PC A 146.186.61.90 255.255.255.234 146.168.61.1 Internet Love Router B WAN IP 146.186.61.102 255.255.255.234 Router A WAN IP Unknown Router A LAN IP XXX.xxX.XXX.xxX - A XXX.XxX.XXX.xXX - B Network A Router B LAN IP Router EB Router A XxX.XxX.xxxxxX C xxX.xxX.xxx.xXX -H XXx.xxx.Xxx.xXX -I Server A 146.186.61.100 XXX.XxX.XxX.XXX D Network B PC B 192.168.0.103 255.255.255.0 192.168.0.254 Router C WAN IP 192.168.0.114 XXx.xxX.XXX.XXX - J Xxx.xxx.XxXxxX -K Router C LAN IP XxX.xxx.xxXxxX -L XXX.xxx.xxXxxX N PC C 10.99.99.102 XXX xxx.XXXXxX O Server B 10.99.99.150 255.255.255.252 10.99.99.1 Network C
