Question: Not related to your earlier projects, consider the table below for a small project. All duration estimates or estimated times are in days. Initial Node

Not related to your earlier projects, consider

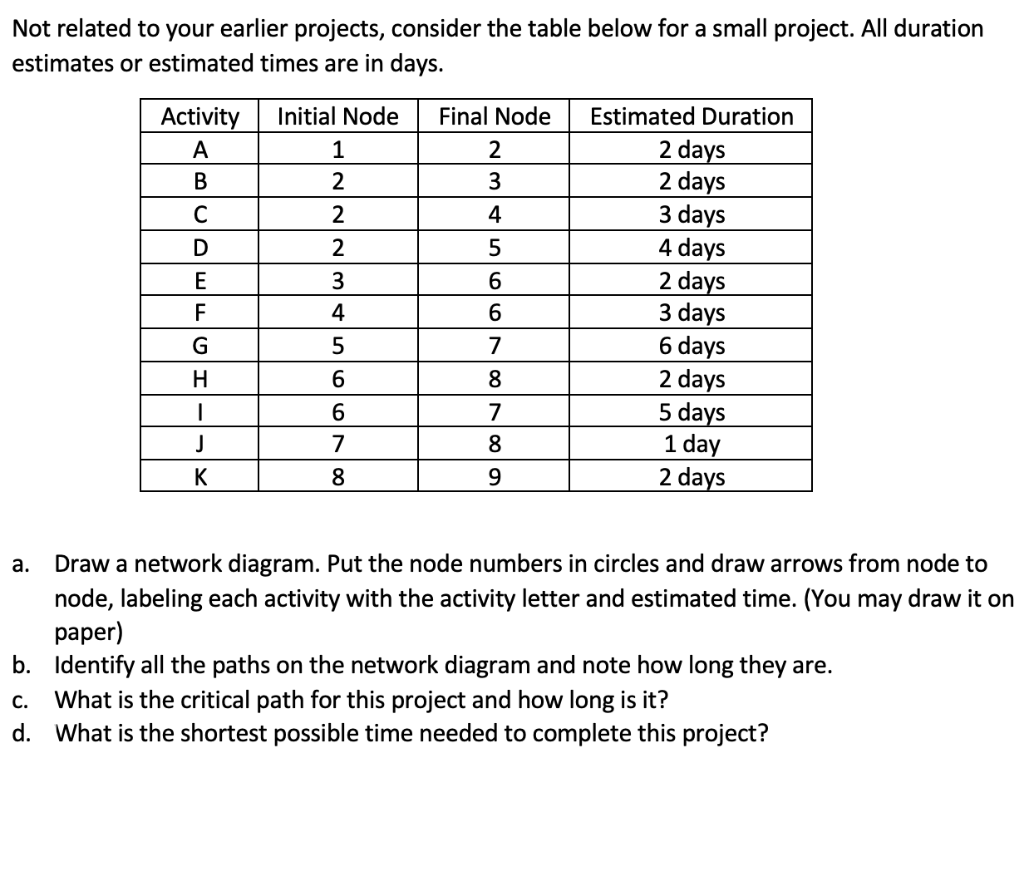

Not related to your earlier projects, consider the table below for a small project. All duration estimates or estimated times are in days. Initial Node Final Node 1 2 Activity A B 2 3 2 4 D 2 5 E F G H 3 4 5 6 6 7 Estimated Duration 2 days 2 days 3 days 4 days 2 days 3 days 6 days 2 days 5 days 1 day 2 days 6 8 1 6 7 8 J K 7 8 9 a. Draw a network diagram. Put the node numbers in circles and draw arrows from node to node, labeling each activity with the activity letter and estimated time. (You may draw it on paper) b. Identify all the paths on the network diagram and note how long they are. c. What is the critical path for this project and how long is it? d. What is the shortest possible time needed to complete this project
