Objective:

Write C code to calculate the performance of a program with dependent arithmetic instructions

on a $5-$stage pipeline architecture. The five stages are: Instruction Fetch $($IF$),$ Instruction Decode

$($ID$),$ Execution $($Ex$),$ Memory access $($ME$),$ and Write$-$Back $($WB$)$

Inputs:

$*$ Number of instructions in the program

$*$ Set of instructions

Outputs:

$*$ A chart of the pipelined stages of the instructions

$*$ The total cycle count for the program

Specification:

The program calculates the output based on choosing from a menu of choices, where each

choice calls the appropriate procedure, where the choices are:

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

You can use any editor an$($d$)/($o$)$r compiler, but make sure your code compiles and executes under the gcc compiler in the Unix environment.

Example:

$ a$.$out

Performance assessment:

$-----------------------$

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $1$

Enter the number of instructions: $4$

R$0=$R$1+$R$2$

R$3=$R$1-$ R$4$

R$2=$R$0+$R$3$

R$0=$R$2+$R$3$

Performance assessment:

$-----------------------$

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $2$

$|$IF $|$ID $|$EX $|$ME $|$WB $|$

$|$IF $|$ID $|$EX $|$ME $|$WB $|$

$|$IF $|$ID $|$EX $|$ME $|$WB $|$

$|$IF $|$ID $|$EX $|$ME $|$WB $|$

Performance assessment:

$-----------------------$

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $3$

The total cycle count for the program is $8$

Performance assessment:

$-----------------------$

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $4$

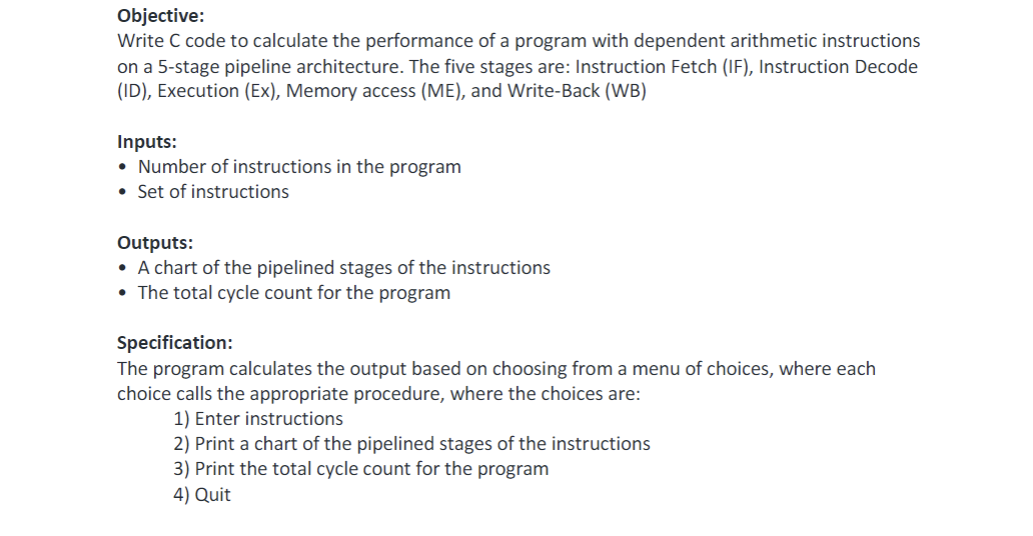

Objective:

Write C code to calculate the performance of a program with dependent arithmetic instructions

on a $5-$stage pipeline architecture. The five stages are: Instruction Fetch $($IF$),$ Instruction Decode

$($ID$),$ Execution $($Ex$),$ Memory access $($ME$),$ and Write$-$Back $($WB$)$

Inputs:

Number of instructions in the program

Set of instructions

Outputs:

A chart of the pipelined stages of the instructions

The total cycle count for the program

Specification:

The program calculates the output based on choosing from a menu of choices, where each

choice calls the appropriate procedure, where the choices are:

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Example:

$ a$.$out

Performance assessment:

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $1$

Enter the number of instructions: $4$

R$0=$R$1+$R$2$

R$3=$R$1-$R$4$

R$2=$R$0+$R$3$

RO$=$R$2+$R$3$

Performance assessment:

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $2$

$|$IF $|$ID $|$EX $|$ME $|$WB $|$

$|$IF $|$ID $|$EX $|$ME $|$WB

$|$IF $|$ID $|$EX $|$ME $|$WB $|$

$|$IF $|$ID $|$EX $|$ME $|$WB $|$

Performance assessment:

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $3$

The total cycle count for the program is $8$

Performance assessment:

Enter instructions

Print a chart of the pipelined stages of the instructions

Print the total cycle count for the program

Quit

Enter selection: $4$
