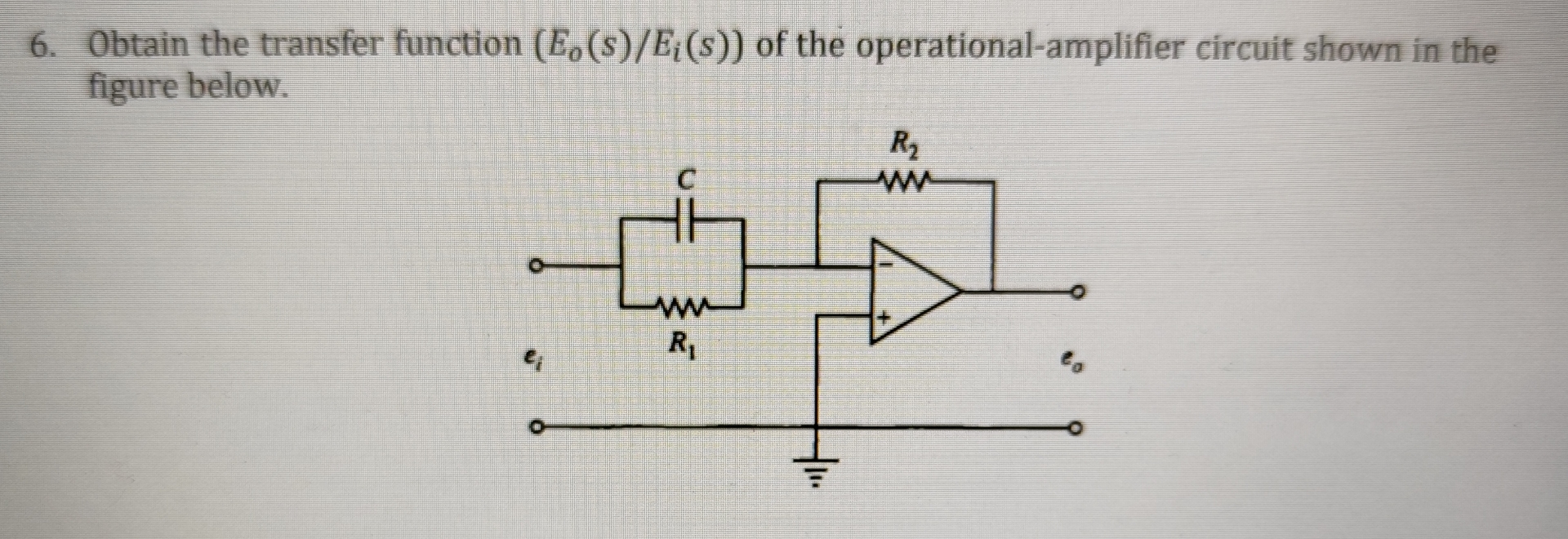

Question: Obtain the transfer function ( E o s E i ( s ) ) of the operational - amplifier circuit shown in the figure below.

Obtain the transfer function (EosEi(s)) of the operational-amplifier circuit shown in the figure below. Can you solve this question without using Z?
Obtain the transfer function ( E o s E i ( s ) )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
