Question: only part c fThe member is supported by a square rod which fits loosely through the smooth square hole of the attached collar at A
only part c

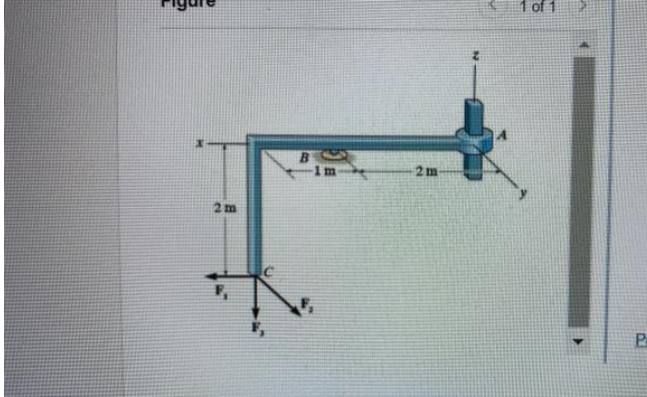

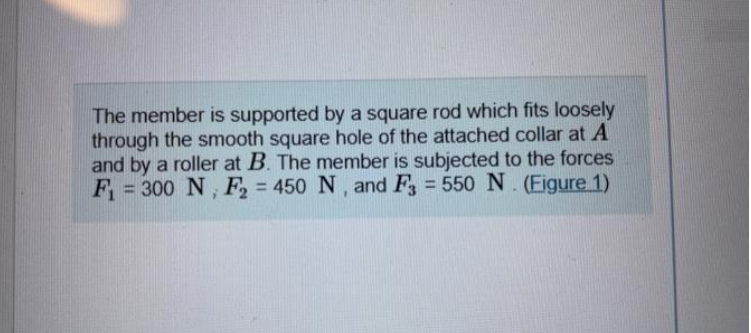

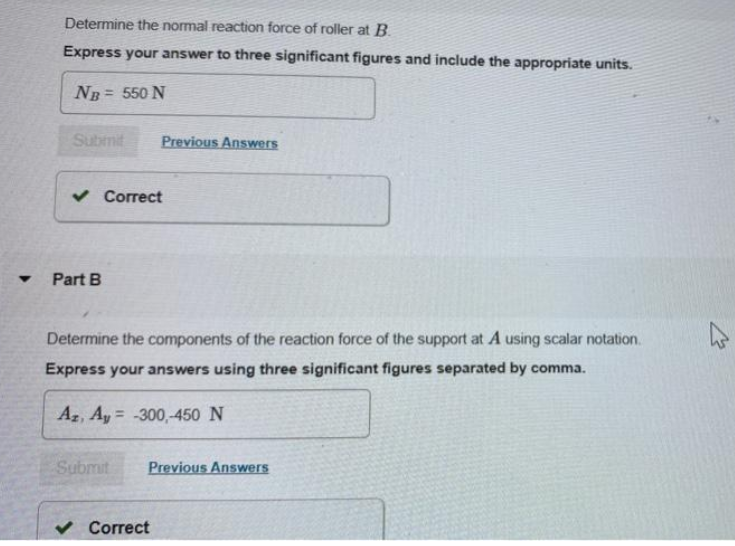

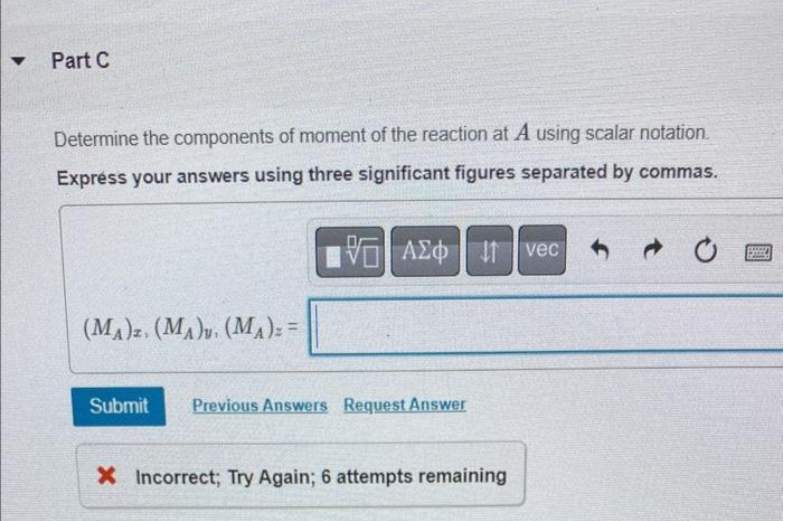

\fThe member is supported by a square rod which fits loosely through the smooth square hole of the attached collar at A and by a roller at B. The member is subjected to the forces F = 300 N , F2 = 450 N , and F3 = 550 N . (Figure 1)Determine the normal reaction force of roller at B Express your answer to three significant figures and include the appropriate units. NB = 550 N Submit Previous Answers Correct Part B Determine the components of the reaction force of the support at A using scalar notation. hs Express your answers using three significant figures separated by comma. Az, Ay = -300,-450 N Submit Previous Answers CorrectPart C Determine the components of moment of the reaction at A using scalar notation. Express your answers using three significant figures separated by commas. VO AEd vec (MA)z. (MA)v. (MA)= = Submit Previous Answers Request Answer X Incorrect; Try Again; 6 attempts remaining
