Question: ots) The switch in the circuit shown below has been in the position a for a long time before switching to the position b at

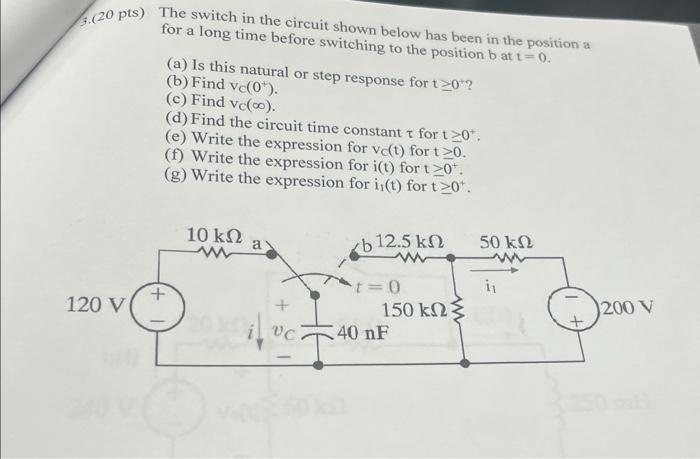

ots) The switch in the circuit shown below has been in the position a for a long time before switching to the position b at t=0. (a) Is this natural or step response for t0+? (b) Find vC(0+). (c) Find vC(). (d) Find the circuit time constant for t0+. (e) Write the expression for vc(t) for t0. (f) Write the expression for i(t) for t0+. (g) Write the expression for i1(t) for t0+

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

The switch in the circuit shown below has been in position a for a long time. At t = 0, the switch moves to position b. Find 1. i1(t) fort 20 2. the energy at t = infinity Please show work a 5 mA 50...

please solve asap s) The switch in the circuit shown below has been in the position a for a long time before switching to the position b at t=0. (a) Is this natural or step response for t0+? (b) Find...

The switch in the circuit has been in the position shown for a very long time and is opened at t = 0 as indicated by the arrow. Use the differential equation method to find i 0 ( t ) for t > 0 . ( 2...

The switch in the circuit shown below was in the first position a long time before opening at t = 0 . Find and sketch i ( t ) before and after t = 0 . Clearly state whether the circuit is over, under...

1. Complete question 1 from the homework for the tutorial A model for circuits Part 3: Multiple batteries. This homework question is on page 111 of the Tutorials in Introductory Physics Homework...

Question - 3 : The switch in the circuit shown in Figure - 3 has been in position x for a long time. At the switch moves instantaneously to position y . a . construct an s - domain circuit for . b ....

The switch in the circuit in Figure has been at position a for a long time before moving to position b at t = 0. Find the voltage Vo(t) for t>0. 75 V +1 5 a 10 (1) b 10 i (1) t = 0 :40 nF 40 +1...

E-Tutorial Physics Book Note: I have attached below the lesson for the two (2) activities. Thank you. Activity 1. Directions: Look at each circuit below and show the solution using Kirchhoff's Rules...

Determining the Step Response of an RC Circuit The switch in the circuit shown in Fig. 7 . 2 2 has been in position 1 for a long time. At t = 0 , the switch moves to position 2 . Find a ) v ( t ) for...

a) What is the importance of application of the Laplace Transform to the analysis of circuits with initial conditions? Give an example. b) What is the procedure to obtain a total solution (transient...
