Question: please solve asap s) The switch in the circuit shown below has been in the position a for a long time before switching to the

please solve asap

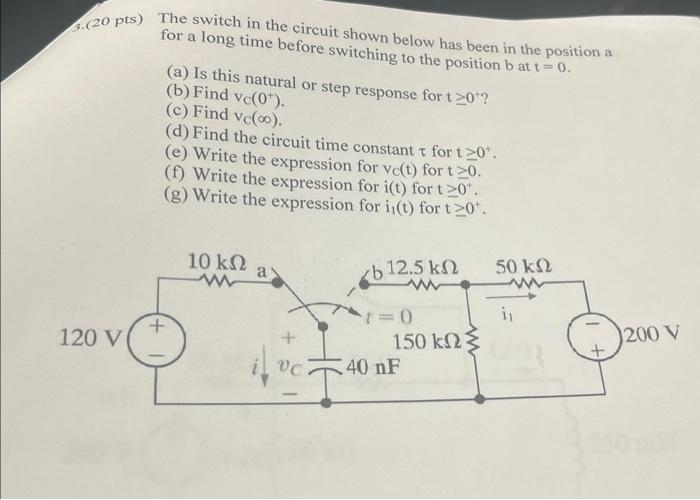

s) The switch in the circuit shown below has been in the position a for a long time before switching to the position b at t=0. (a) Is this natural or step response for t0+? (b) Find vC(0+). (c) Find vc(). (d) Find the circuit time constant for t0+. (e) Write the expression for vC(t) for t0. (f) Write the expression for i(t) for t0+. (g) Write the expression for i1(t) for t0+

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q 2 : The switch in the circuit shown in Figure - 2 was open for a long time. At t = 0 , it is closed. Calculate ( i ) Inductor current at t = 0 ^ ( + ) , and t = \ infty . [ 3 + 2 ] ( ii ) Time...

Please Solve All Questions The switch in the circuit shown is first thrown to point b for a long tirne then thrown to point a . The capocitor in the circuit shown is initially uncharged, R = 4 0 , c...

ots) The switch in the circuit shown below has been in the position a for a long time before switching to the position b at t=0. (a) Is this natural or step response for t0+? (b) Find vC(0+). (c)...

The switch in the circuit shown below was in the first position a long time before opening at t = 0 . Find and sketch i ( t ) before and after t = 0 . Clearly state whether the circuit is over, under...

The switch in the circuit has been in position a for a long time. At t = 0 the switch chanfes its position to b . switch changes its position to b . Deternine V 0 ( s )

The switch in the circuit has been in position A for a long time. At t = 0 , the switch moves from position A to B . Find ( a ) and ( b )

Question - 3 : The switch in the circuit shown in Figure - 3 has been in position x for a long time. At the switch moves instantaneously to position y . a . construct an s - domain circuit for . b ....

The switch in the circuit has been in position a for a long time before it moves to position b at t= 0. Find the voltage across capacitor at t = 0.5 ms. (A) 20.65 V (B) 25.25 V (C) 40 V (D) 24 V 15mA...

Problem 1 8 : The circuit shown below has been operating for a long time with the switch in position \ ( \ mathbf { A } \ ) . At \ ( \ mathrm { t } = 0 \ ) , the switch is flipped into position B ....

Determining the Step Response of an RC Circuit The switch in the circuit shown in Fig. 7 . 2 2 has been in position 1 for a long time. At t = 0 , the switch moves to position 2 . Find a ) v ( t ) for...
