Question: P 1 0 . 1 0 - 1 0 When the input to the circuit shown in Figure P 1 0 . 1 0 -

P 10.10-10 When the input to the circuit shown in Figure P10.10-10 is the voltage source voltage
vs(t)=4cos(100t)V
the output is the voltage
vo(t)=8cos(100t+135)V
Determine the values of C and R

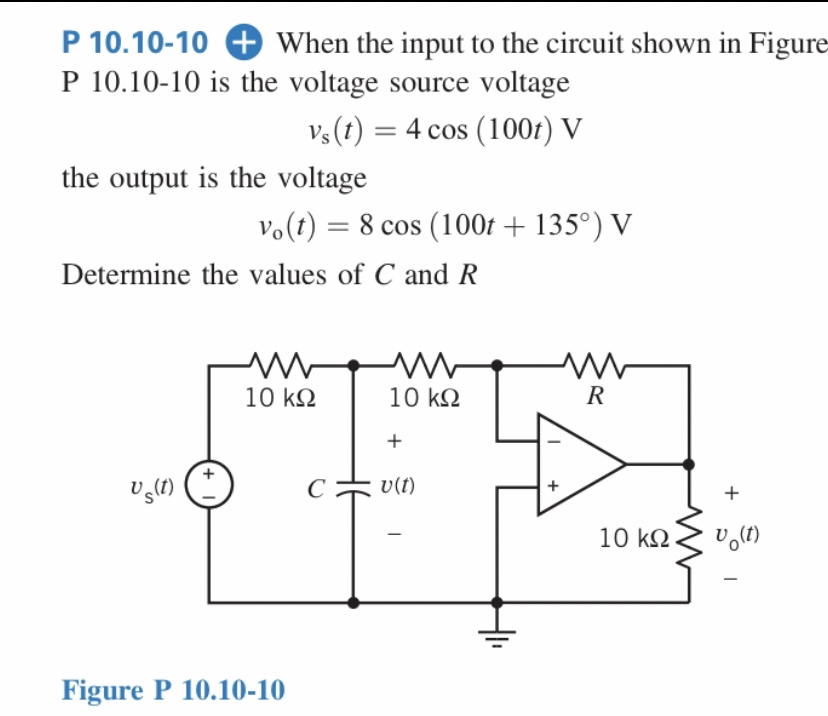

Figure P 10.10-10
USE Thevenin's Theorem to solve
P 1 0 . 1 0 - 1 0 When the input to the circuit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
