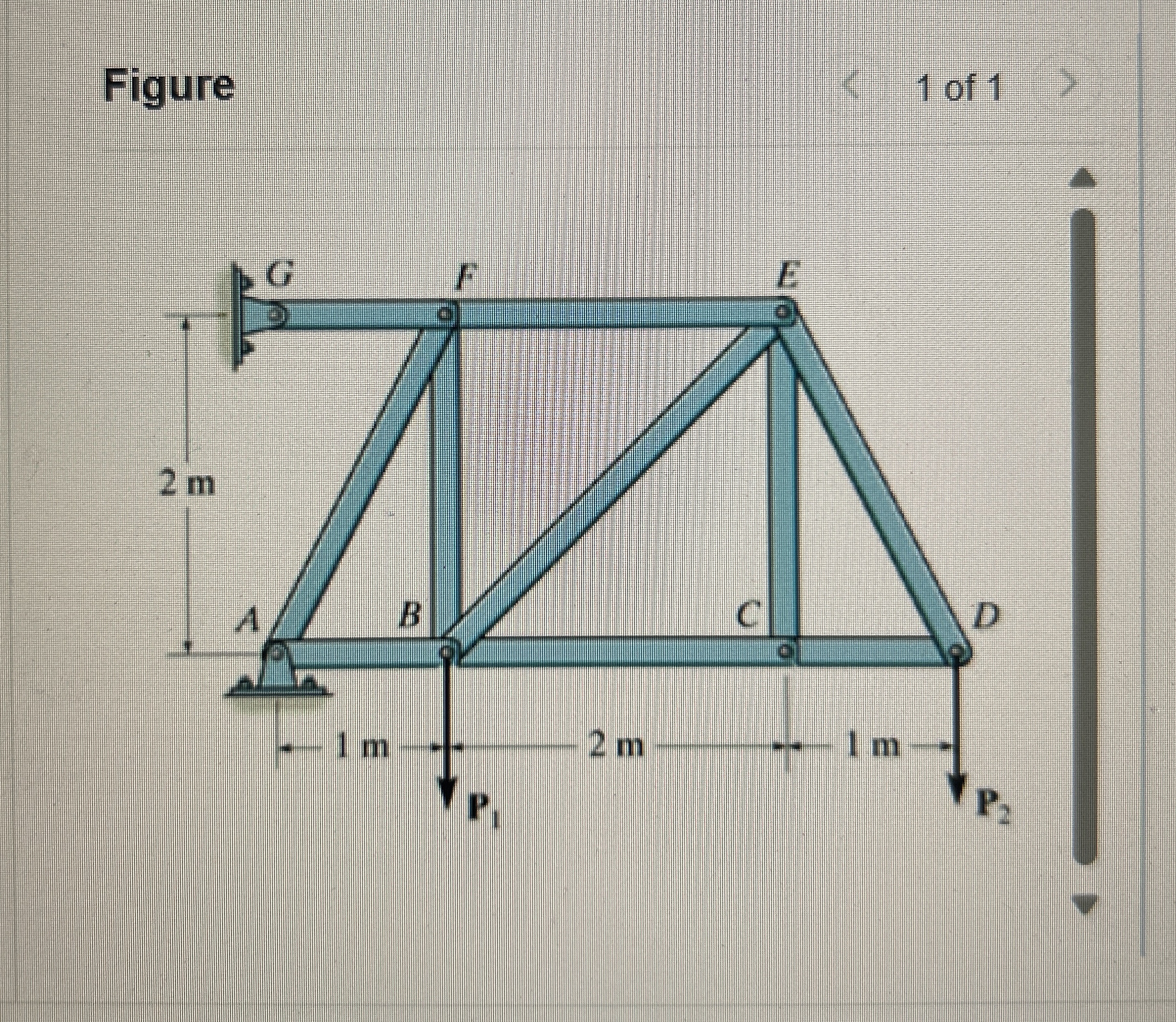

Question: P 1 = 1 6 kN , P 2 = 4 kN Determine force in member AB , AF , BC , BE , BF

P1=16 kN, P2=4 kN
Determine force in member AB, AF, BC, BE, BF, CD,CE, DE, EF, and FG. Rounded to three significant figures.
P 1 = 1 6 kN , P 2 = 4 kN Determine force in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
