Question: P . 1 . ( 2 5 points ) If rope BC will fail when the tension becomes 3 0 0 kN , determine the

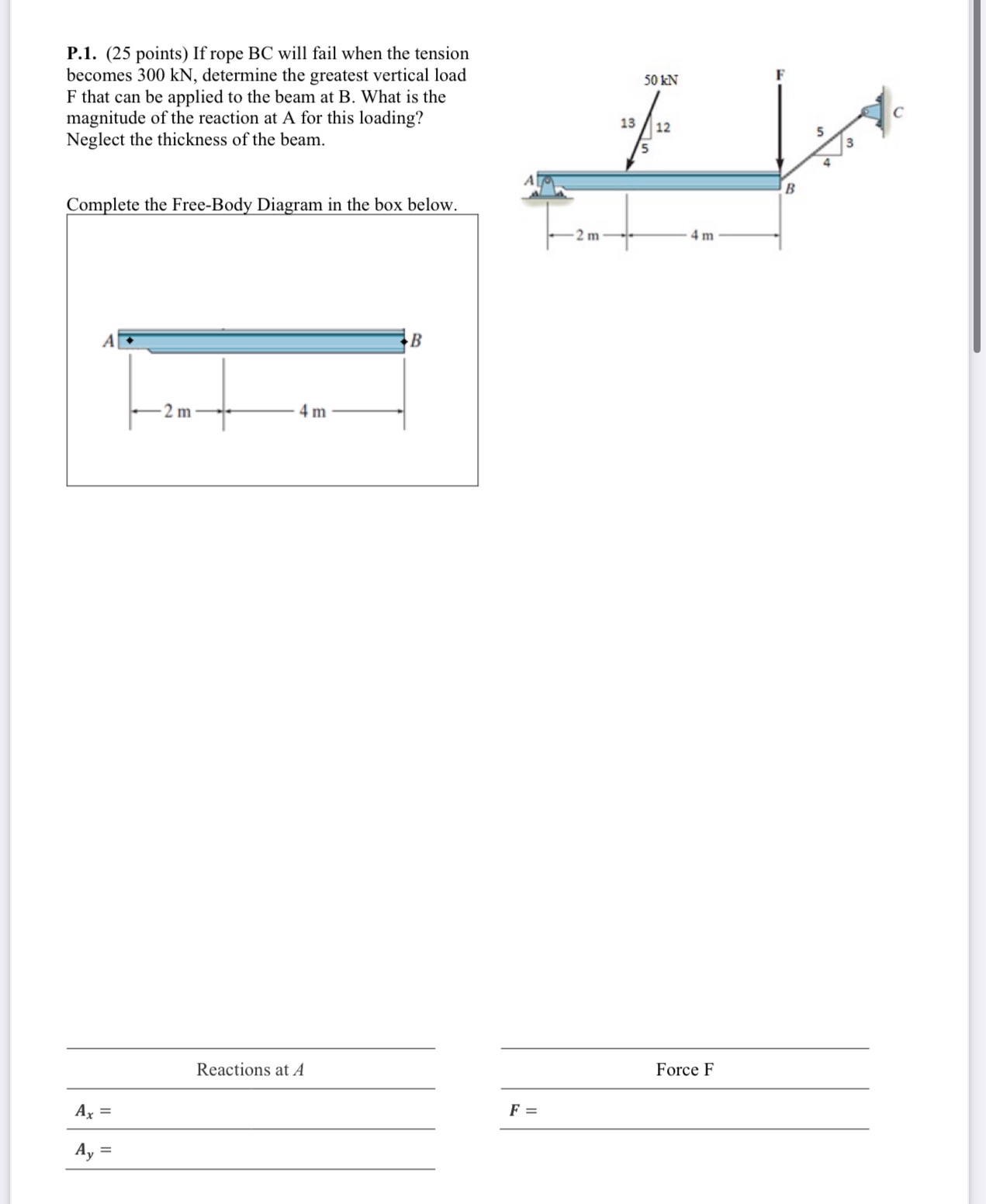

P.1.(25 points) If rope BC will fail when the tension becomes 300 kN , determine the greatest vertical load F that can be applied to the beam at B . What is the magnitude of the reaction at A for this loading? Neglect the thickness of the beam.
Reactions at A
Force F
Ax=
Ay=
F=
P . 1 . ( 2 5 points ) If rope BC will fail when
