Question: P 3 - 1 . In each case, draw a free - body diagram of the ring at A and identify each force. Prob. P

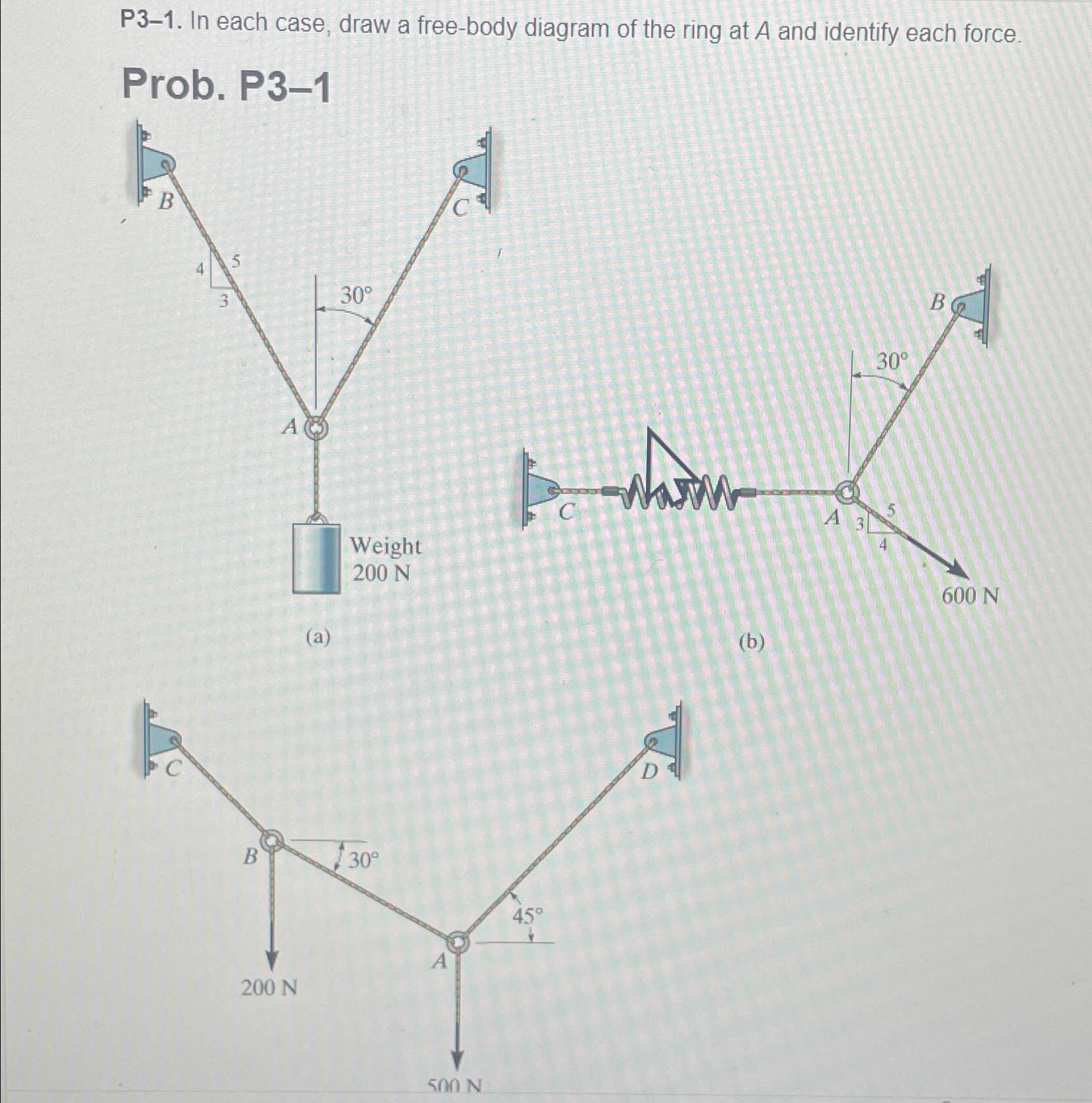

P3-1. In each case, draw a free-body diagram of the ring at A and identify each force.
Prob. P3-1
(b)
P 3 - 1 . In each case, draw a free - body

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
