Question: Please help me 1. [25 pts] i.) Draw a free body diagram including a Cartesian coordinate axes and the direction of the acceleration. ii.) Write

Please help me

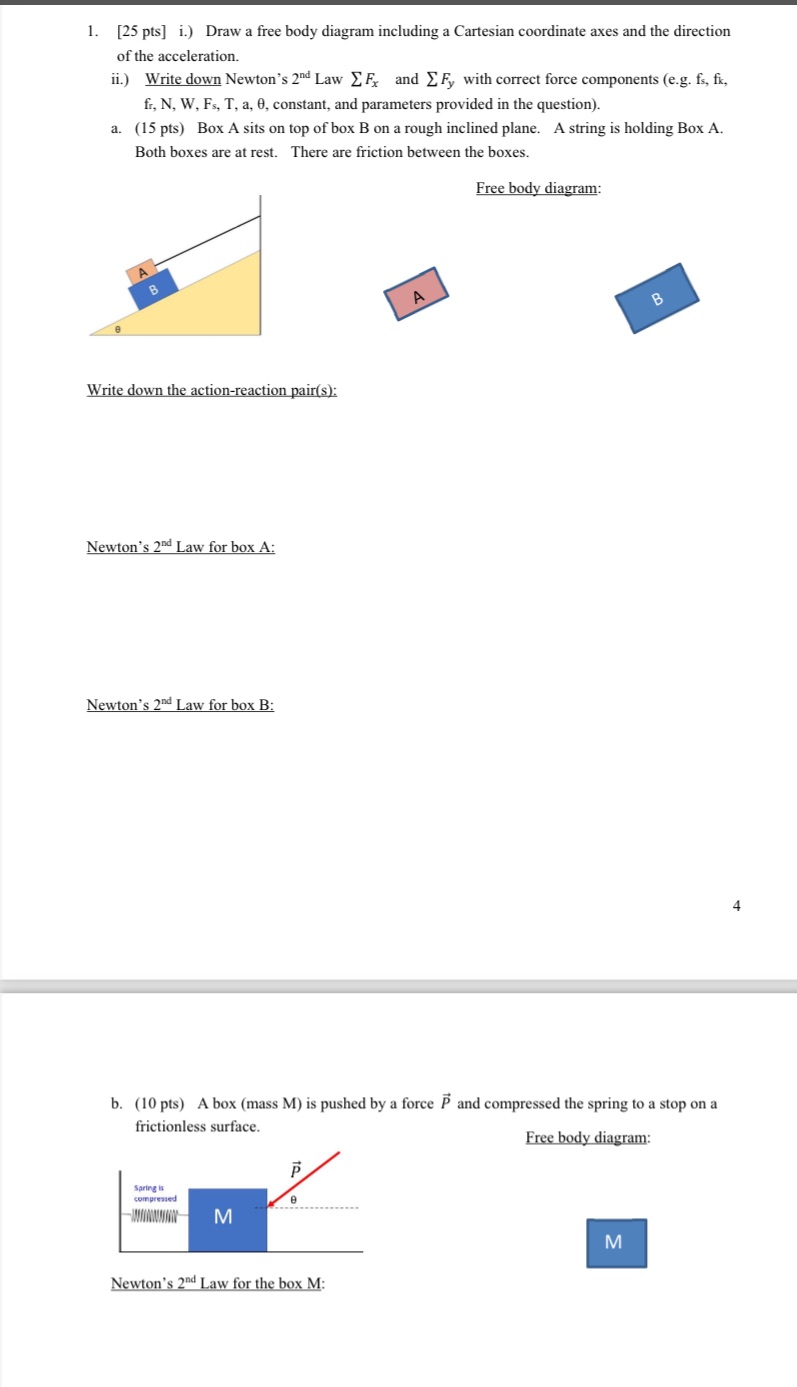

1. [25 pts] i.) Draw a free body diagram including a Cartesian coordinate axes and the direction of the acceleration. ii.) Write down Newton's 2"d Law _ Fx and > Fy with correct force components (e.g. fs, fi, fr, N, W, Fs, T, a, 0, constant, and parameters provided in the question). a. (15 pts) Box A sits on top of box B on a rough inclined plane. A string is holding Box A. Both boxes are at rest. There are friction between the boxes. Free body diagram: A B A B Write down the action-reaction pair(s): Newton's 2nd Law for box A: Newton's 2nd Law for box B: 4 b. (10 pts) A box (mass M) is pushed by a force P and compressed the spring to a stop on a frictionless surface. Free body diagram: aring is compressed M M Newton's 2nd Law for the box M
