Question: P 3 . 3 6 . The three bay, one - story frame consists of beams pin connected to columns and column bases pinned to

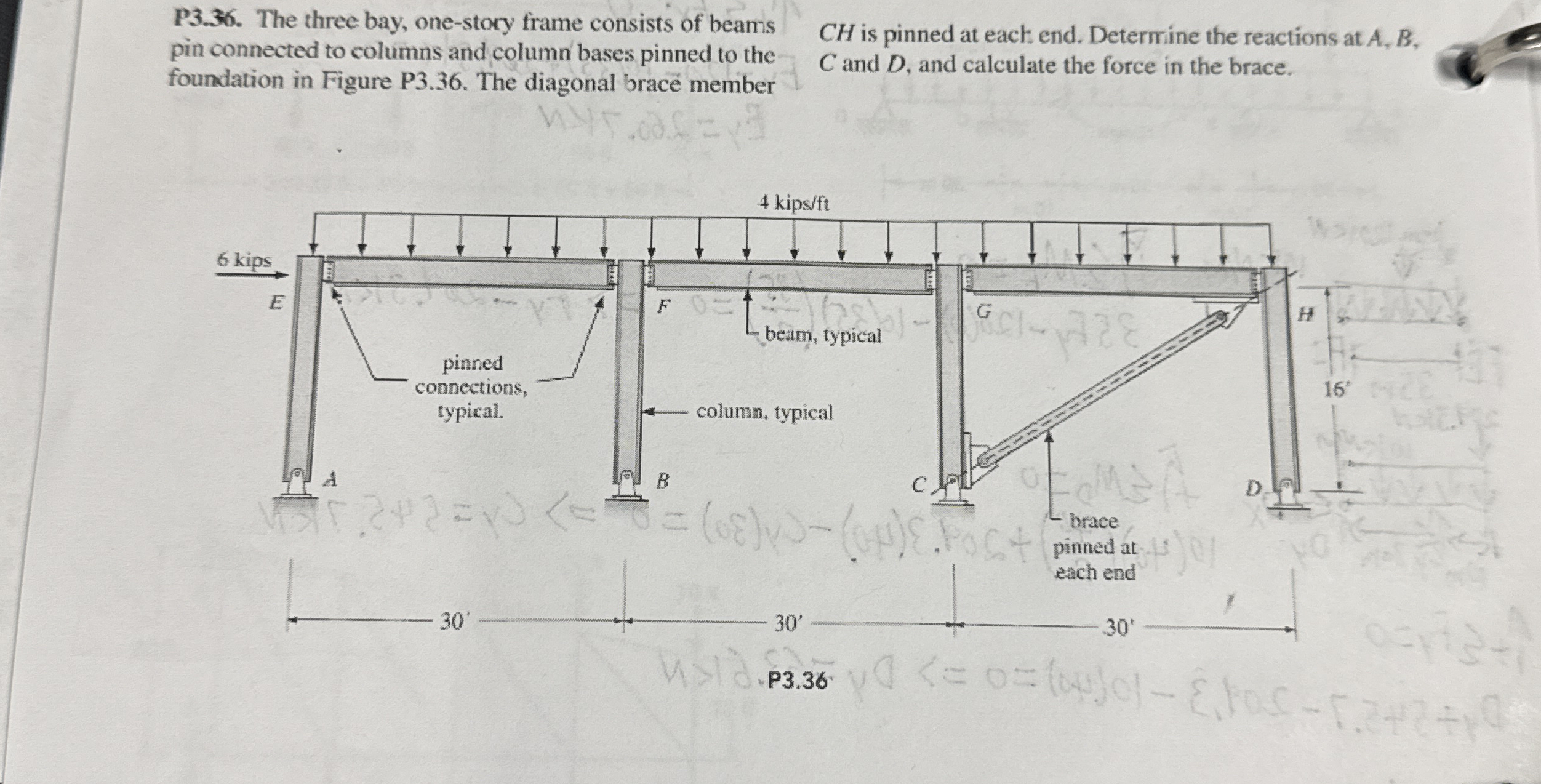

P3.36. The three bay, one-story frame consists of beams pin connected to columns and column bases pinned to the foundation in Figure P3.36. The diagonal brace member
CH is pinned at each end. Determine the reactions at A,B,C and D, and calculate the force in the brace.
P 3 . 3 6 . The three bay, one - story frame

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
