Question: P 8 - 3 ) Using a CAD package, draw the necessary views and completely dimension the part shown. Do not base your 2 -

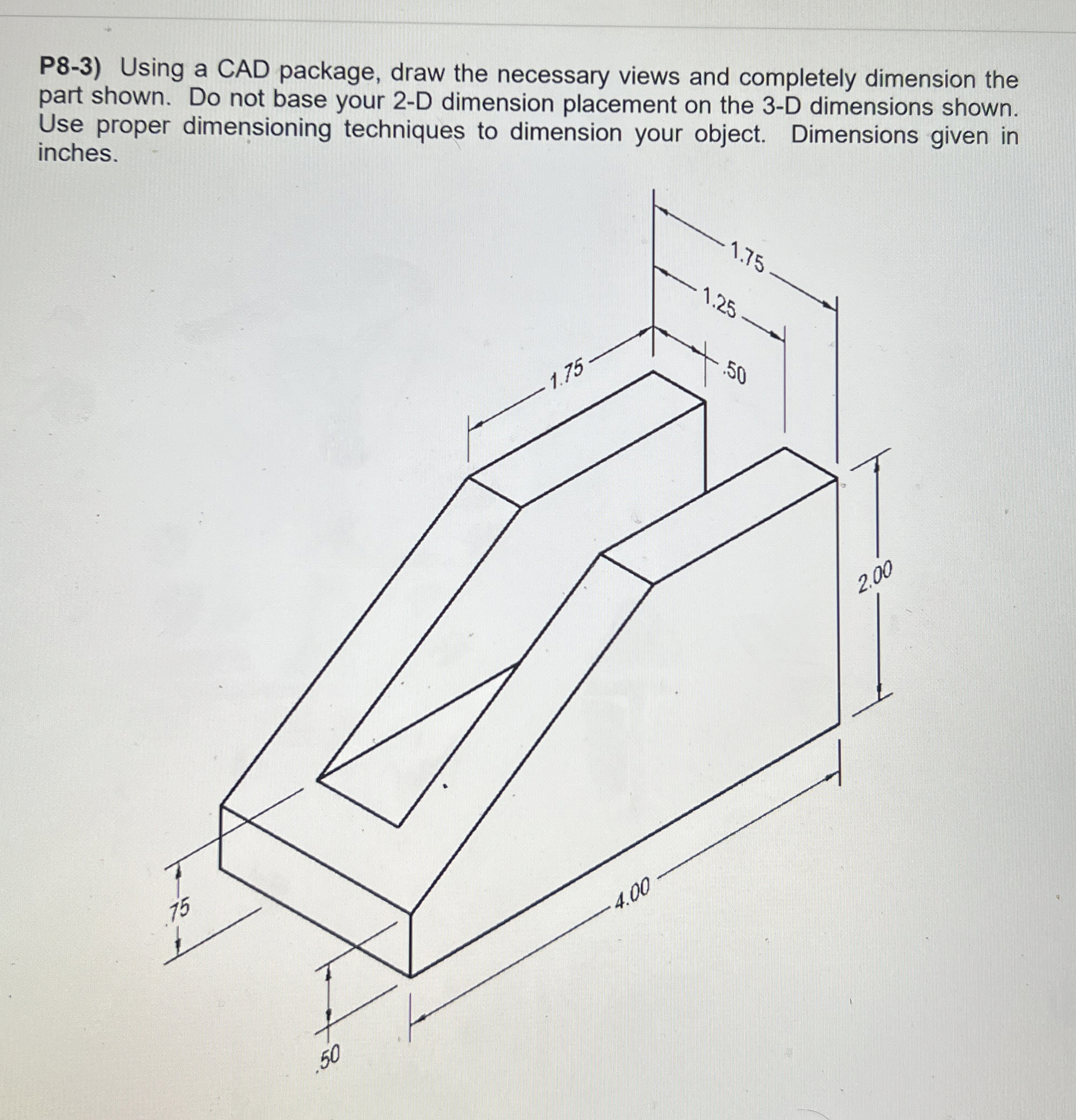

P8-3) Using a CAD package, draw the necessary views and completely dimension the
part shown. Do not base your 2-D dimension placement on the 3-D dimensions shown.
Use proper dimensioning techniques to dimension your object. Dimensions given in
inches.
P 8 - 3 ) Using a CAD package, draw the necessary

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
