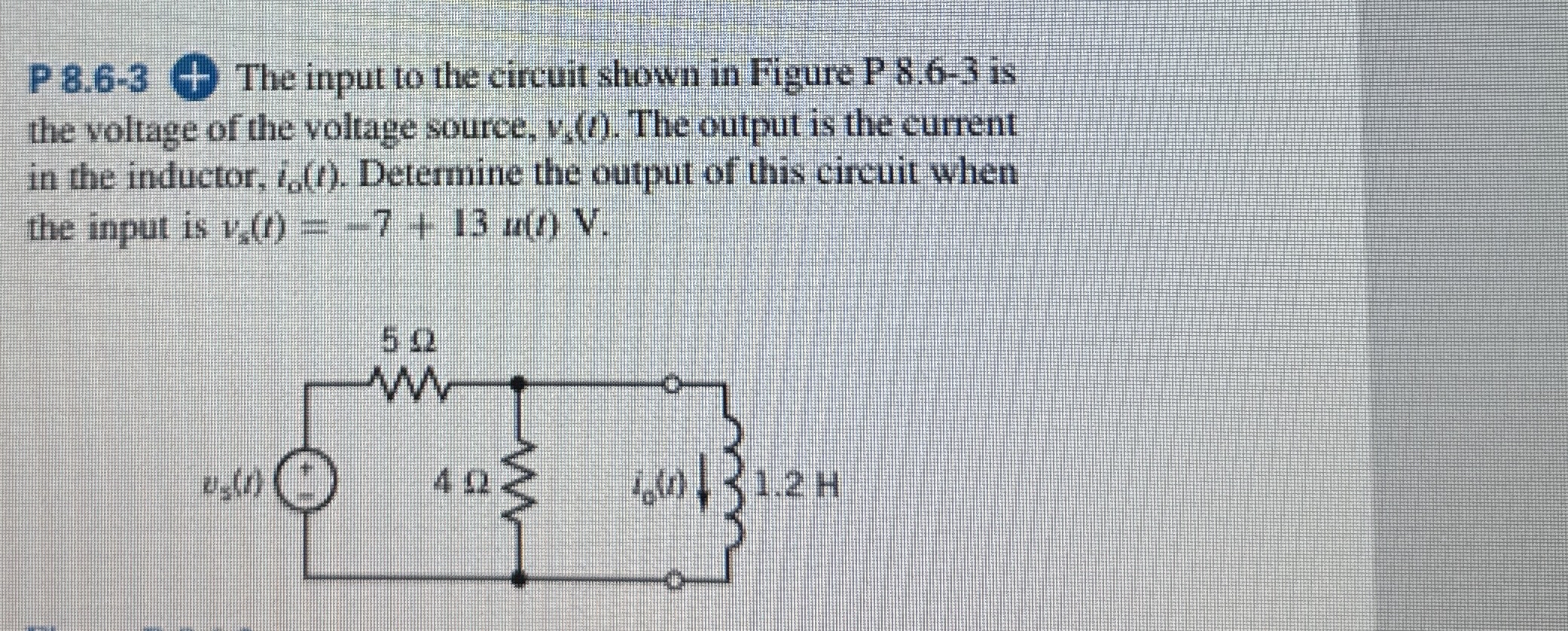

P 8.6-3o+ The input to the circuit shown in Figure P 8.6-3 is the voltage of the voltage source, vs(t). The output is the current in the inductor, i0(t). Determine the output of this circuit when the input is vs(t)=-7+13u(t)V.
