Question: P3) a) Impement the following two Boolean functions using only two 2x4 decoders F1 = x'z + y'z F2 = xz + yz The complements

P3) a) Impement the following two Boolean functions using only two

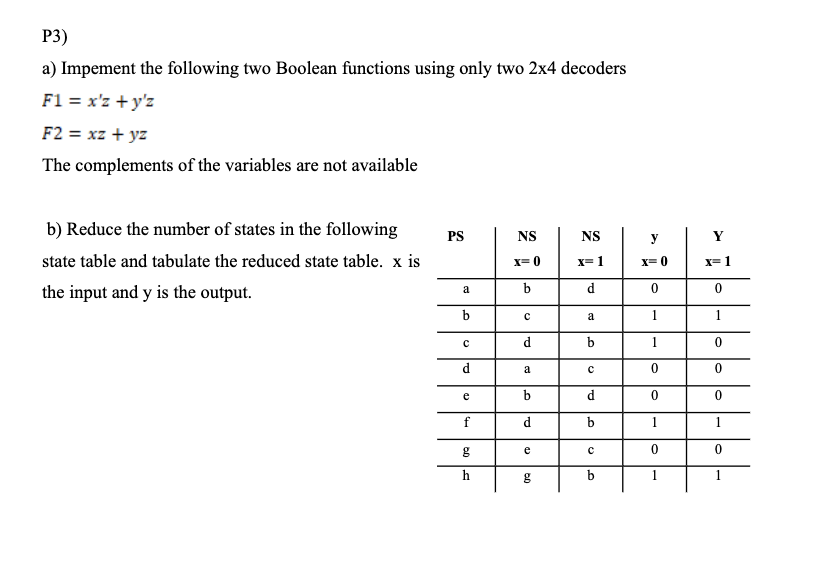

P3) a) Impement the following two Boolean functions using only two 2x4 decoders F1 = x'z + y'z F2 = xz + yz The complements of the variables are not available PS NS NS y Y b) Reduce the number of states in the following state table and tabulate the reduced state table. x is the input and y is the output. x=0 x=0 x=1 a b d 0 0 b a 1 d b 0 d a 0 0 e b d 0 0 f d b Cro e 0 h Cro b 1 1
