Question: page 2 7 3 , 3 Consider the three functions, the maps of which are shown. Implement them on the PLA shown here. Be sure

page 273,3

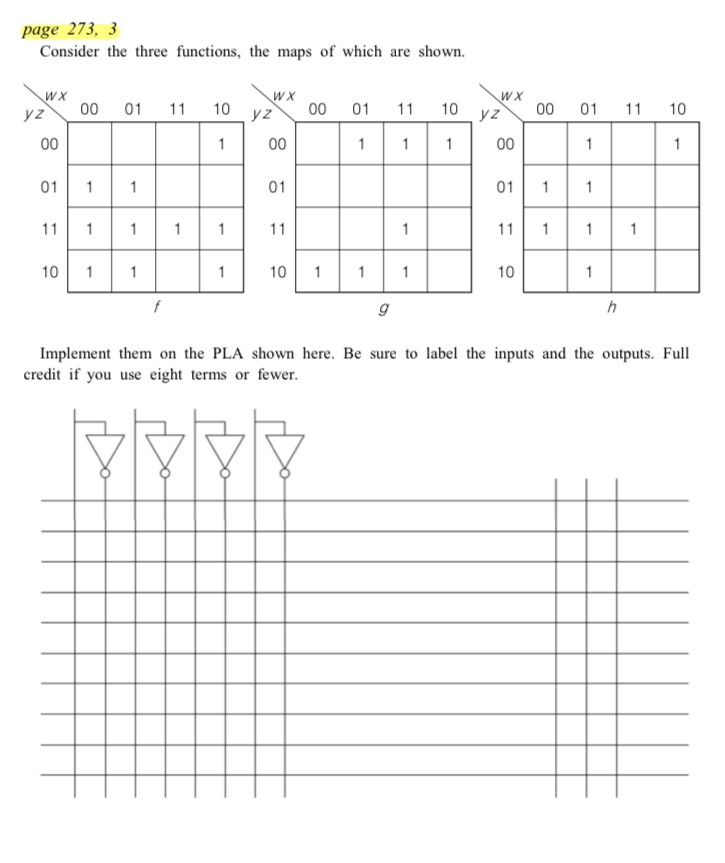

Consider the three functions, the maps of which are shown.
Implement them on the PLA shown here. Be sure to label the inputs and the outputs. Full credit if you use eight terms or fewer.
page 2 7 3 , 3 Consider the three functions, the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
